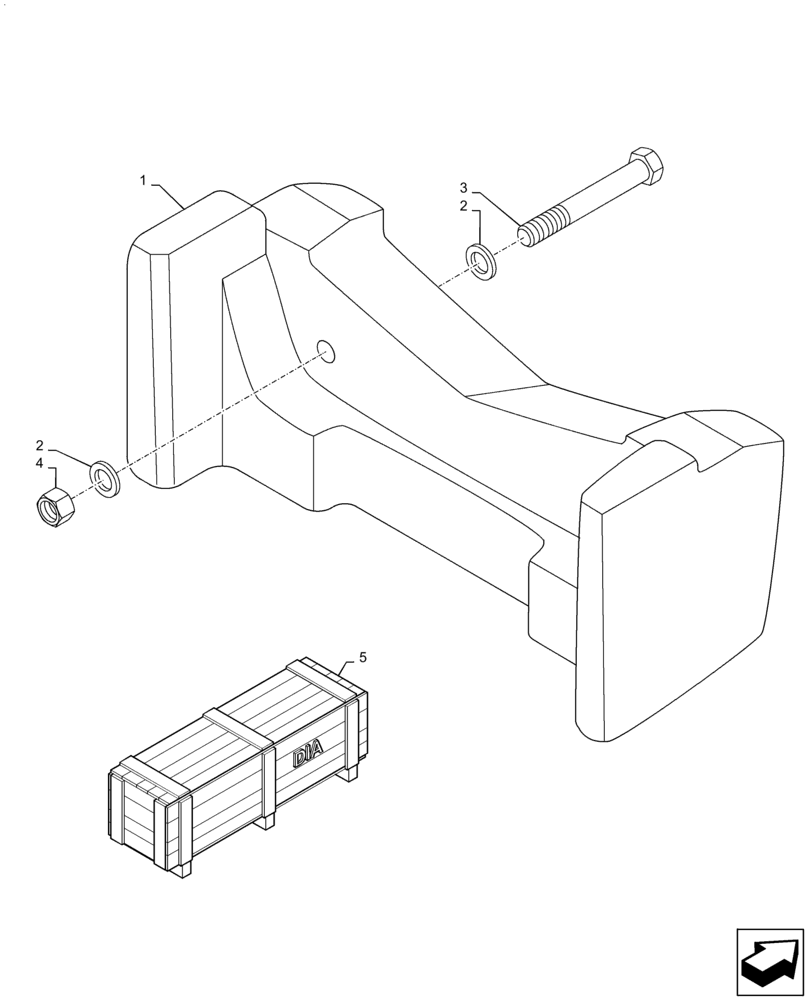

Запчасти Case 570N EP (39.140.AM[04]) - VAR - 747580 - FRONT COUNTERWEIGHT, 440 LBS (39) - FRAMES AND BALLASTING

1

360867A1

COUNTERWEIGHT,Front, 440 Lb

1шт.

2

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

3

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

4шт.

4

829-1420

NUT,M20, Cl 10

2шт.

5

144509A1

CONSTRUCTION DIA

DIA Kit, 440 LB Front Counterweight (Order from Wholegoods Only) Incl 1 - 4

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
