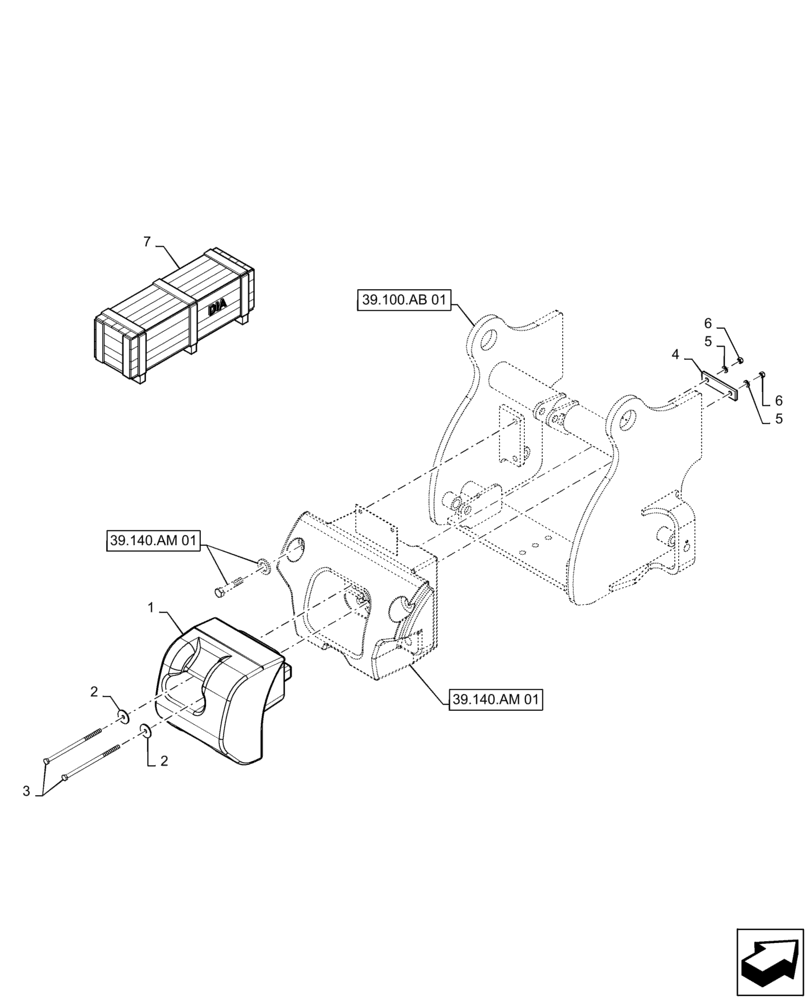

Запчасти Case 570N EP (39.140.AM[02]) - VAR - 747879 - PLUG IN COUNTERWEIGHT, 500 LBS (39) - FRAMES AND BALLASTING

1

87579174

COUNTERWEIGHT,Filler, 500 Lb

1шт.

2

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

2шт.

3

84019085

BOLT,Hex, M12 x 260mm, Cl 8.8

2шт.

4

87571073

MOUNTING PLATE

Counter Weight

1шт.

5

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

6

829-1412

NUT,M12, Cl 10.9

2шт.

7

87583660

KIT

DIA Kit, 500 Lb Rear Counterweight (Order from Wholegoods Only) Incl 1 - 6

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
