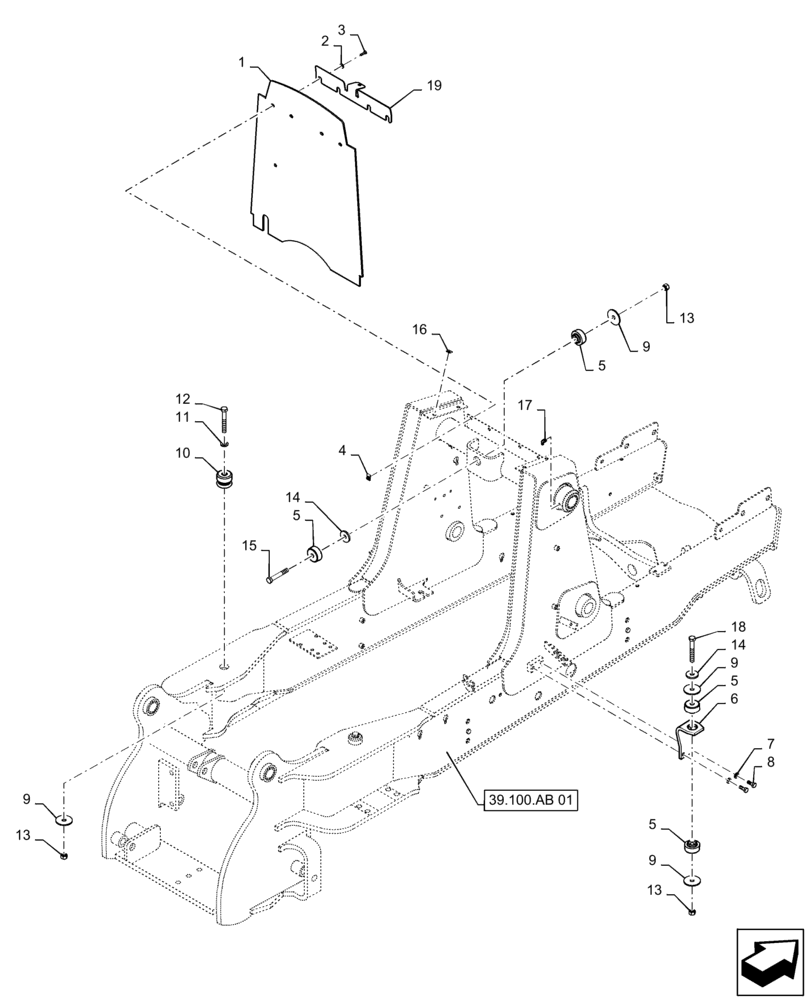

Запчасти Case 570N EP (39.100.AB[02]) - FRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

87652272

CURTAIN

Hanging Barrier

1шт.

2

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

4шт.

3

87026277

BOLT,Hex, M8 x 30mm, Cl 10.9, Full Thd

4шт.

4

833-40408

NUT,M8, U

5шт.

5

D138565

SHOCK ABSORBER

Front Pod

6шт.

6

141249A1

SUPPORT

Front Pod

2шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

8

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

9

47384148

WASHER,17mm ID x 70mm OD x 4.50mm, HTS ZNM

7шт.

10

A141451

SHOCK ABSORBER

Rear Cab

2шт.

11

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

12

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

13

829-1416

NUT,M16, Cl 10

5шт.

14

87742857

WASHER,17.3mm ID x 51mm OD x 6.2mm Thk

3шт.

15

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

1шт.

16

833-40310

NUT,M10, U

2шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

18

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

19

47619534

BRACKET

Barrier Curtain

1шт.
