(35.723.AB[01]) - VAR - 747539, 747657, 747860, 747862, 747863 - HYDRAULIC LINES, BUCKET DUMP, CYLINDER

Запчасти Case 570N EP (35.723.AB[01]) - VAR - 747539, 747657, 747860, 747862, 747863 - HYDRAULIC LINES, BUCKET DUMP, CYLINDER (35) - HYDRAULIC SYSTEMS

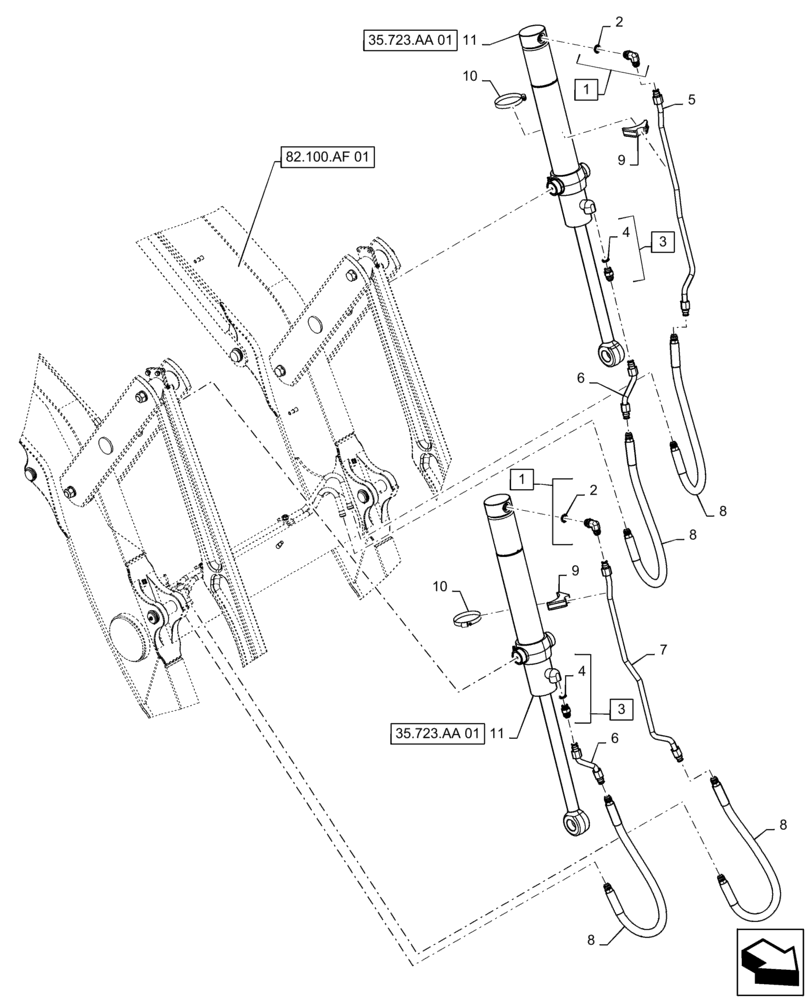

Схема запчастей Case 570N EP - (35.723.AB[01]) - VAR - 747539, 747657, 747860, 747862, 747863 - HYDRAULIC LINES, BUCKET DUMP, CYLINDER (35) - HYDRAULIC SYSTEMS
7
1
4
35.723.aa 01
2
9
2
6
8
3
9
3
35.723.aa 01
11
4
1
8
10
6
82.100.af 01
10
8
11
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 2

2шт.

2

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Used On Ref 1

1шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 4

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Used On Ref 3

1шт.

5

84311925

TUBE

LH Bucket Cylinder

1шт.

6

87316049

RIGID TUBE

Cylinder Rod End

2шт.

7

84311927

TUBE

RH Bucket Cylinder

1шт.

8

371031A1

HYDRAULIC HOSE,3/8" ID x 940mm L

Loader Bucket Cylinder

4шт.

9

L79937

SADDLE

Tube Support

2шт.

10

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

11

87624263

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

CE Gray Dump

2шт.

See Fig 35.723.AB (01) For Service Parts

1шт.
