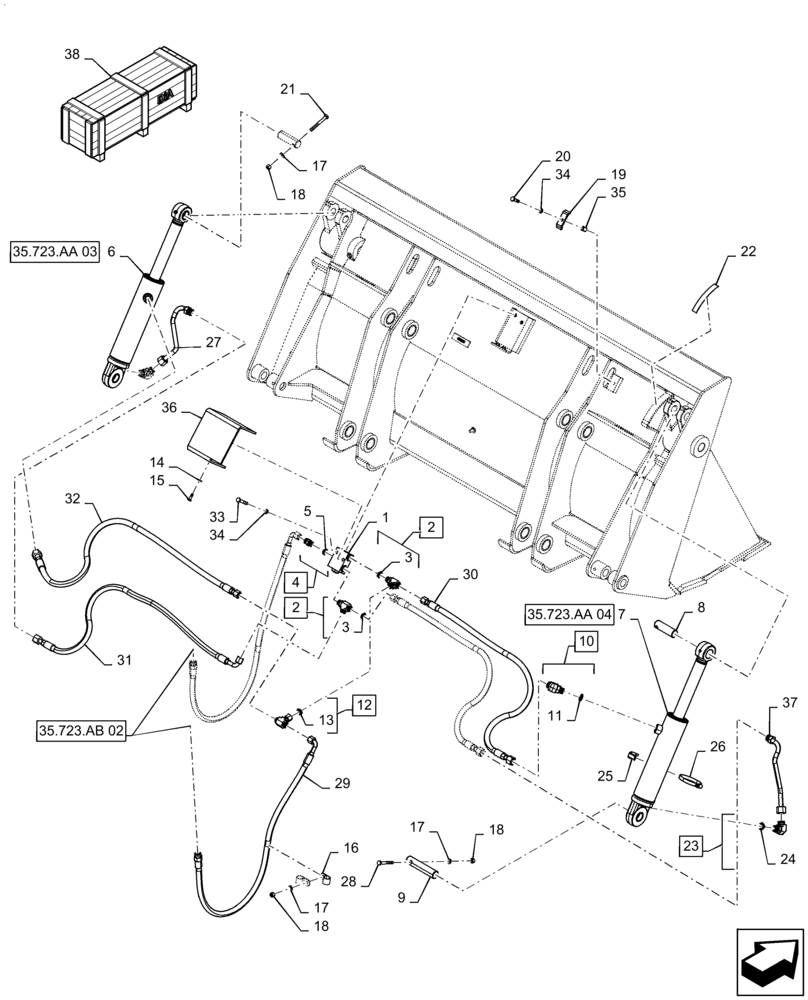

Запчасти Case 570N EP (35.723.AA[02]) - VAR - 747863 - 82", 4 IN 1 BUCKET HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

47565552

PILOT VALVE

1шт.

2

84533155

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

Incl 3

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 2

2шт.

4

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl 5

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Incl in 4

1шт.

6

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

LH Clam

1шт.

7

87455459

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

RH Clam

1шт.

8

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

9

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

10

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Incl 11

2шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 10

2шт.

12

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

Incl 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Incl in 12

1шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

19

D143846

CLAMP

Hose

2шт.

20

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

21

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

22

321-1708

DECAL

Bucket

1шт.

23

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Incl 24

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 23

2шт.

25

47591143

CLAMP,3/4" Clamping tube

Saddle

2шт.

26

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

27

84219830

HYD TUBE

LH Cylinder

1шт.

28

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

29

84272032

HOSE ASSY.,12.5mm ID x 1290mm L

4 In 1 Bucket

2шт.

30

84219839

HOSE ASSY.,12.5mm ID x 1152mm L

RH Cylinder

2шт.

31

84219844

HOSE ASSY.,12.5mm ID x 1250mm L

LH Cylinder

1шт.

32

84219846

HOSE ASSY.,12.5mm ID x 1283mm L

4 In 1 Port A

1шт.

33

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

34

892-11010

LOCK WASHER,M10

4шт.

35

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

Split

2шт.

36

388848A1

GUARD

Lock Valve

1шт.

37

84219829

HYD TUBE

RH Cylinder

1шт.

38

84482628

BUCKET

82", 4 In 1 Bucket (Order from Wholegoods Only) Incl 1 - 37

1шт.

To See The Full DIA KIT Composition, Look For All The Figures Where The DIA KIT P/N Is Shown

1шт.
