Запчасти Case 570N EP (35.723.AA[01]) - DUMP CYLINDER (35) - HYDRAULIC SYSTEMS

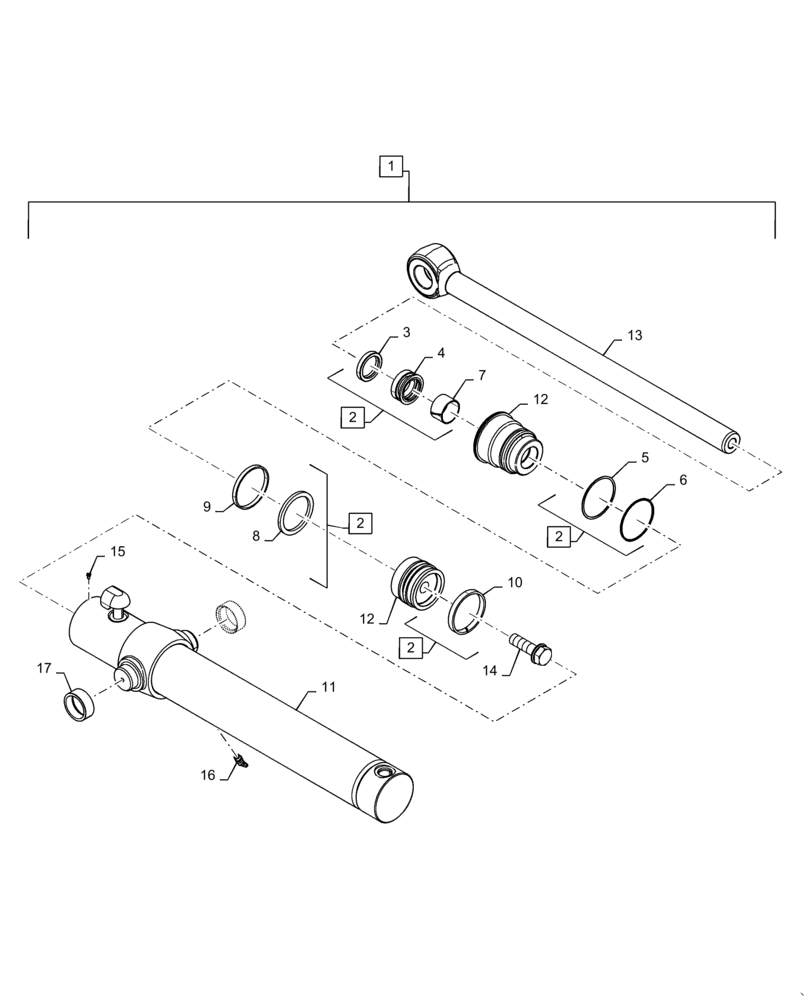

Схема запчастей Case 570N EP - (35.723.AA[01]) - DUMP CYLINDER (35) - HYDRAULIC SYSTEMS
16
11
3
1
5
12
12
10
14
13
2
2
6
15
4
2
8
2
7
9
17

Артикул

Название

Примечание

Количество

1

87624263

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

Incl 3 - 17

1шт.

2

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 3 - 10

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Rod, 38.1mm, Incl in 2

1шт.

4

1542874C1

SEAL KIT,38.1mm Rod

Rod & Buffer, 38.1mm, Incl in 2

1шт.

5

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

Back Up, Incl in 2

1шт.

6

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

Incl in 2

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Rod, Incl in 2

1шт.

8

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Loader, Incl in 2

1шт.

9

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

Piston, 76.2mm, Incl in 2

1шт.

10

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

Incl in 2

1шт.

11

113135A2

BARREL

Tube, Incl in 1

1шт.

12

87609668

JACK PISTON

Piston & Gland, Incl in 1

1шт.

13

87609666

PISTON ROD

38.1mm, Incl in 1

1шт.

14

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

Incl in 1

1шт.

15

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking, Incl in 1

1шт.

16

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Incl in 1

1шт.

17

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

External, Incl in 1

2шт.

Выбрано товаров: 17
