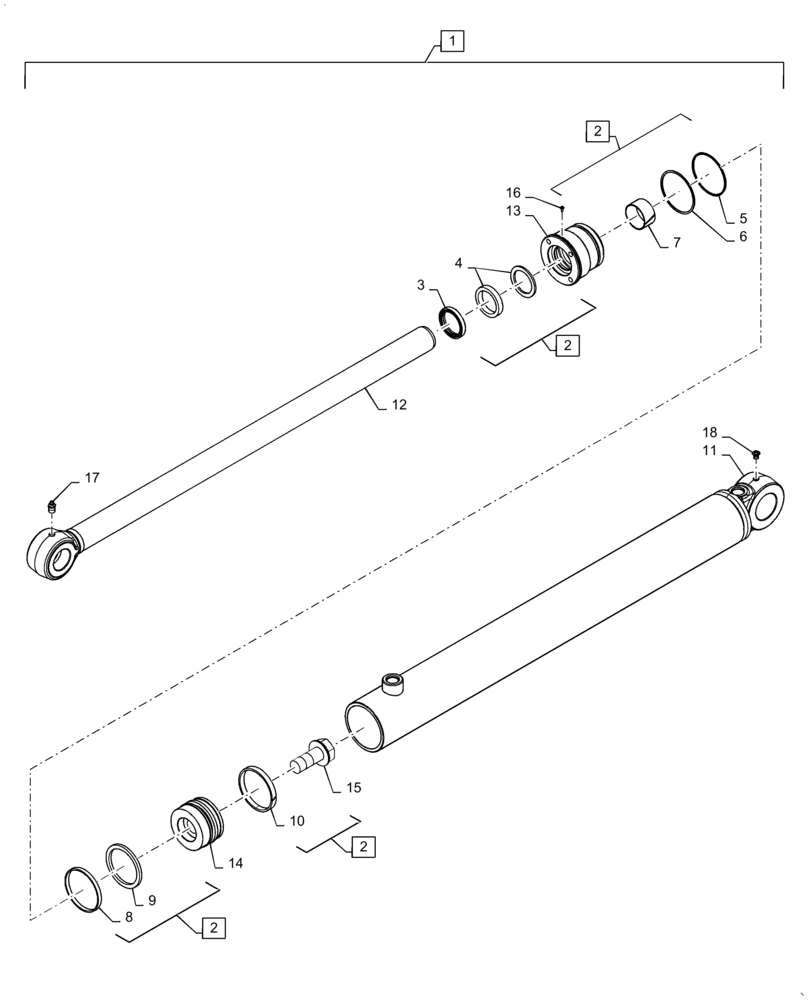

Запчасти Case 570N EP (35.701.CB[01]) - LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

87384876

LIFT CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

Complete, Incl 3 - 18

1шт.

1

87384876R

REMAN-HYD CYLINDER

1шт.

1

87384876C

CORE-HYD CYLINDER

Return Number

1шт.

2

86982375

SEAL KIT

Incl 3 - 10

1шт.

3

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Rod, 44.4mm

1шт.

4

1542875C1

SEAL KIT,44.4mm Rod

Rod & Buffer, 44.4mm

1шт.

5

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

1шт.

6

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Rod

1шт.

8

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

Piston, 82.6mm

1шт.

9

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

Loader, 82.6mm

1шт.

10

S109445

RING,82.55mm OD, Ext

Wear, 82.6mm

1шт.

11

384241A1

TUBE,82.6mm Bore Dia

1шт.

12

133083A1

PISTON ROD

44.4mm

1шт.

13

1542969C1

GLAND

82.6mm Diameter Cylinder, 44.4mm Rod, Incl 14

1шт.

14

135161A1

PISTON,82.07mm Bore, 44.5mm Rod, 50.65mm W

1шт.

15

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

16

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

353-4

PLUG,Cap, .366" OD

1шт.
