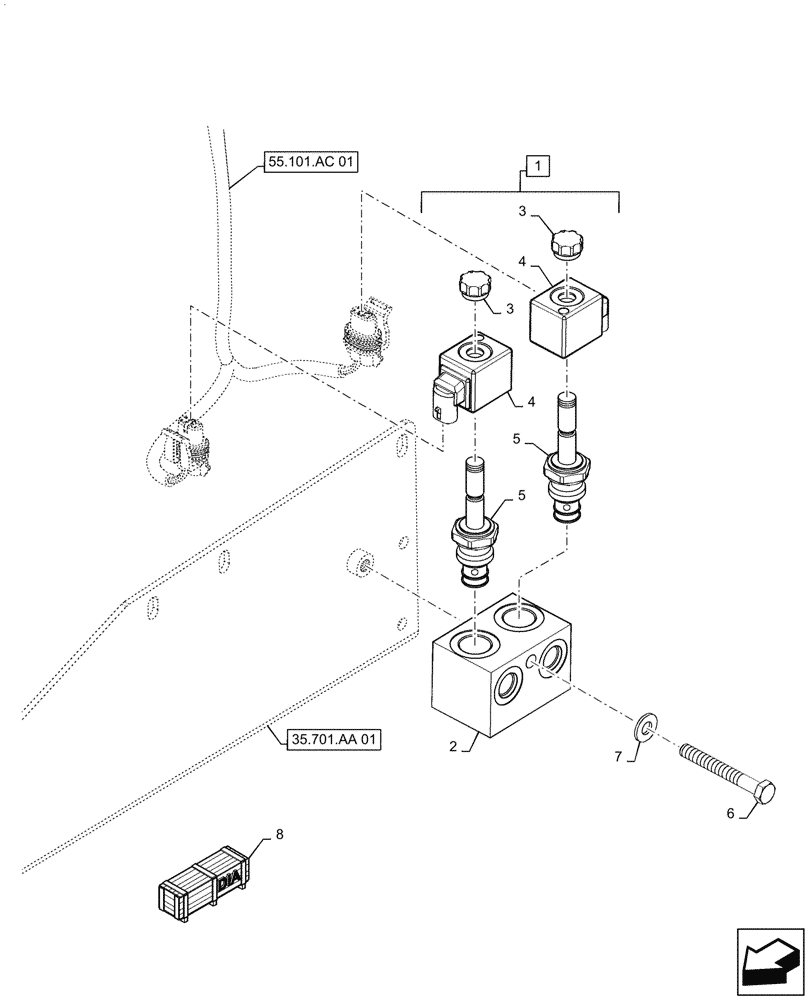

Запчасти Case 570N EP (35.701.BQ[01]) - VAR - 747873 - VALVE, ASSY, RIDE CONTRL (35) - HYDRAULIC SYSTEMS

1

84348784

SOLENOID VALVE

Ride Control, ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

9970384

RING NUT

2шт.

4

84478803

COIL

Ride Control

2шт.

5

84519540

SOLENOID VALVE

Ride Control

2шт.

6

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

8

47676309

CONSTRUCTION DIA

DIA Kit, Ride Control (Order from Wholegoods Only) Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
