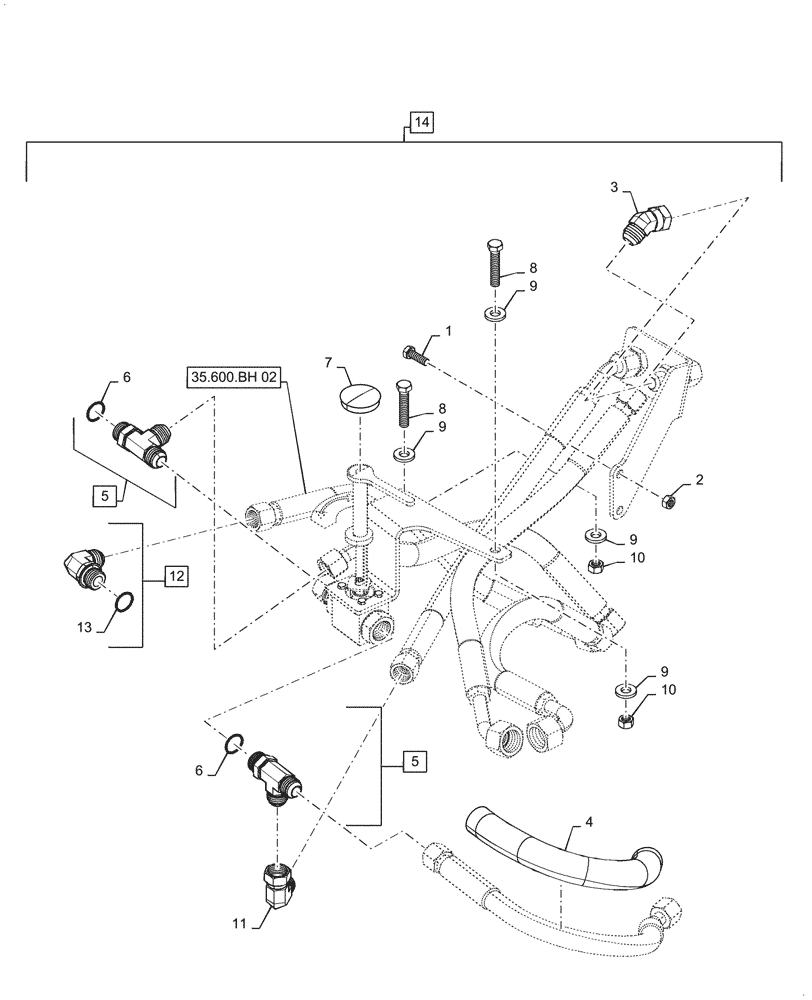

Запчасти Case 570N EP (35.600.BH[03]) - HIGH FLOW, AUXILIARY, W/PTO (35) - HYDRAULIC SYSTEMS

1

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

2

86500689

NUT,M10 x 1.5, Cl 10

2шт.

3

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

4

47603901

HOSE PROTECTION,34mm ID x 39.5mm OD x 400mm

1шт.

4

87491619

GUARD,19.1mm ID x 1400mm L

1шт.

5

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

Incl 6

2шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 5

2шт.

7

353-417

PLUG,Dome, 2.000" hole, Nylon

1шт.

8

1637759

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9, Full Thd

2шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

10

337475

NUT,M12, Cl 10

2шт.

11

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

12

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 13

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 12

1шт.

14

47795879

KIT

DIA Kit, Hi Flow Aux with PTO (Order from Whoelgoods Only) Incl 1 - 13

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
