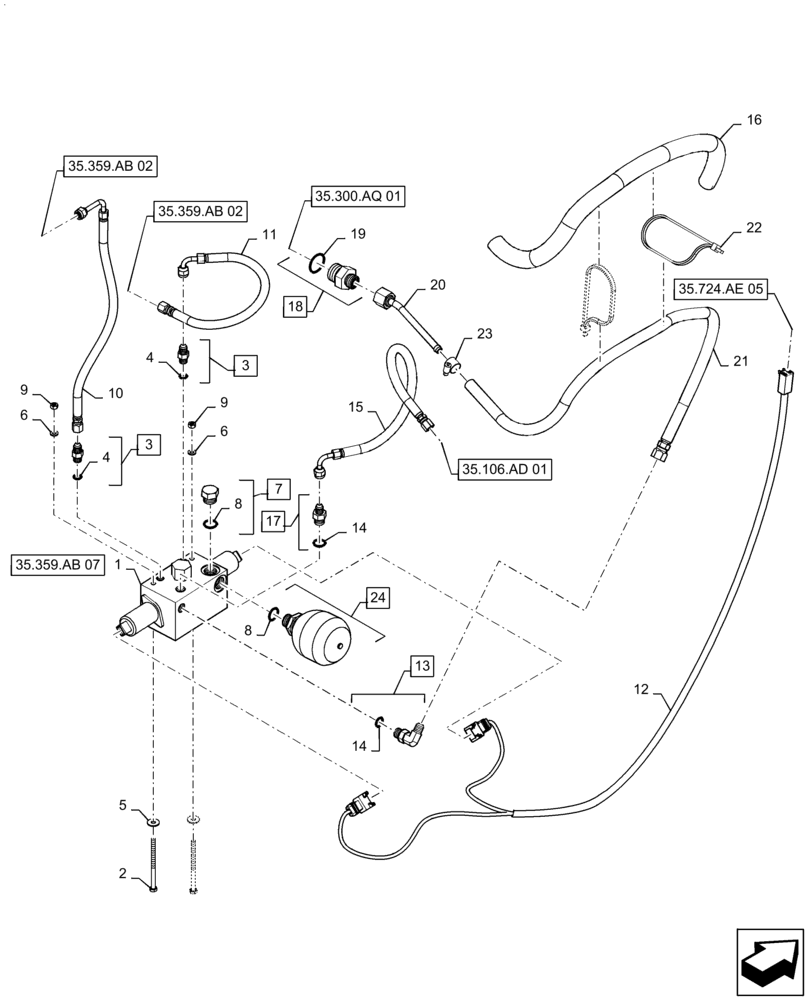

Запчасти Case 570N EP (35.359.AB[05]) - VAR - 747892 - 4 IN 1 CONTROL VALVE, W/ACCUMULATOR (35) - HYDRAULIC SYSTEMS

1

47765053

CONTROL VALVE

Proportional Control, 4x1 Clam Bucket

1шт.

2

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl 4

2шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

Incl 8

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

10

87662930

HYDRAULIC HOSE,6.3mm ID x 534mm L

EH-Clam, Port K

1шт.

11

87662928

HYDRAULIC HOSE,6.3mm ID x 387mm L

EH-Clam, Port I

1шт.

12

87651975

WIRE HARNESS

EH-Clam, Jumper

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl 14

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

87662932

HYDRAULIC HOSE,6.3mm ID x 525mm L, SAE 100R16

EH-Clam To Loader, Pressure

1шт.

15

47943629

HYDRAULIC HOSE

EH-Clam To Loader, Pressure, Used on Shimadzu Pump, Start Year: 01-MAR-16

1шт.

16

87452021

PROTECTIVE SLEEVE,19mm ID x 650mm L

Hose, Years: -01-MAR-16

1шт.

17

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl 17

1шт.

18

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

Incl 19

1шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

84325520

TUBE

Return

1шт.

20

47945008

TUBE

Return, Used on Shimadzu Pump, Start Year: 01-MAR-16

1шт.

21

47609683

HYDRAULIC HOSE,10mm ID x 905mm

EH-Clam to Tank

1шт.

21

47944685

HYDRAULIC HOSE

EH-Clam to Tank, Used on Shimadzu Pump, Start Year: 01-MAR-16

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

23

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

24

87425225

ACCUMULATOR,0.16L

Incl 8

1шт.
