Запчасти Case 570N EP (35.359.AB[02]) - VAR - 745163, 747892 - LOADER CONTROL VALVE, 3 SPOOL - W/PARKER PUMP (35) - HYDRAULIC SYSTEMS

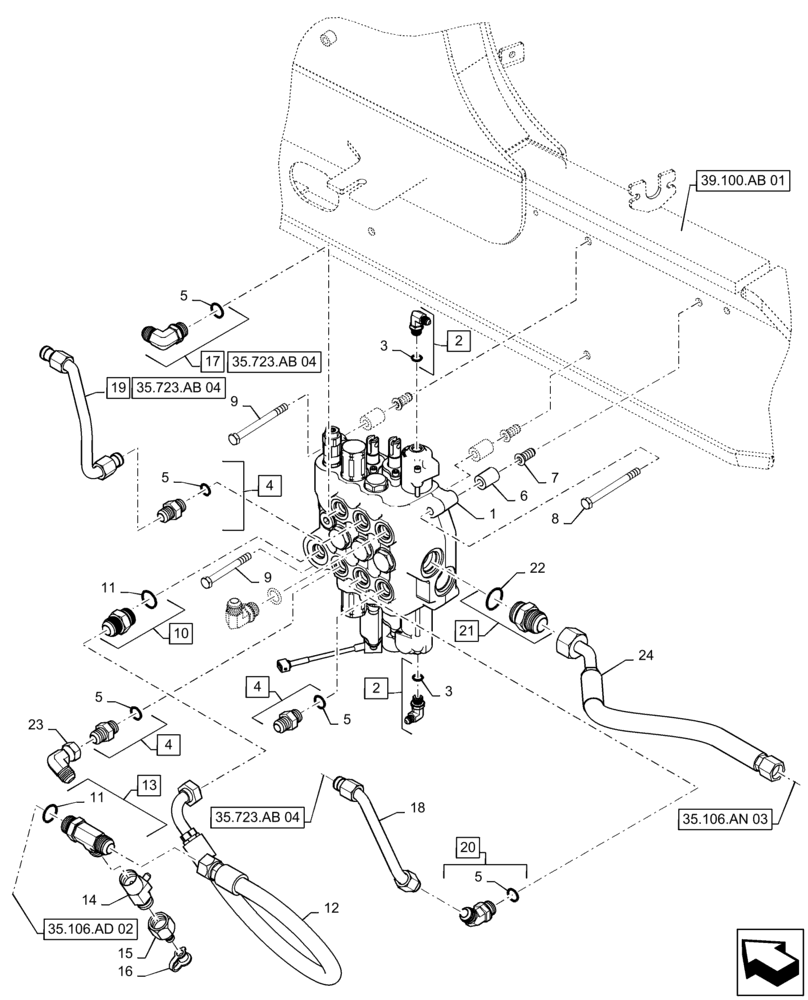

Схема запчастей Case 570N EP - (35.359.AB[02]) - VAR - 745163, 747892 - LOADER CONTROL VALVE, 3 SPOOL - W/PARKER PUMP (35) - HYDRAULIC SYSTEMS
20
21
1
4
5
11
3
7
18
4
9
16
22
6
11
9
35.723.ab 04
35.723.ab 04
3
35.723.ab 04
2
39.100.ab 01
4
5
23
8
14
35.106.an 03
17
24
12
2
5
10
5
5
15
35.106.ad 02
13
19

Артикул

Название

Примечание

Количество

1

47603158

VALVE

Loader, 3 Spool

1шт.

1

84296788

SEAL KIT

Individual Components/Seals not Serviced

1шт.

2

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl 3

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

Incl 5

3шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

6

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

8

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

9

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

10

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 11

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

87452399

HYDRAULIC HOSE,1 1/16" - 12 JIC, 90 Degree, 775mm L

Rear Pump Section

1шт.

13

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

Incl 11

1шт.

14

218-5411

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 7/16"-20 Br

1шт.

15

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Disconnect

1шт.

16

H434163

DUST CAP

1шт.

17

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 5

2шт.

18

84380643

TUBE

Loader Lift, Port B

1шт.

19

84380579

TUBE

Loader Lift, Port A

1шт.

20

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl 5

1шт.

21

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 22

1шт.

22

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

24

84484113

HOSE ASSY.,19mm ID x 555mm L, SAE 100R6

Loader Control Valve to Flow Control Valve

1шт.

Выбрано товаров: 25
