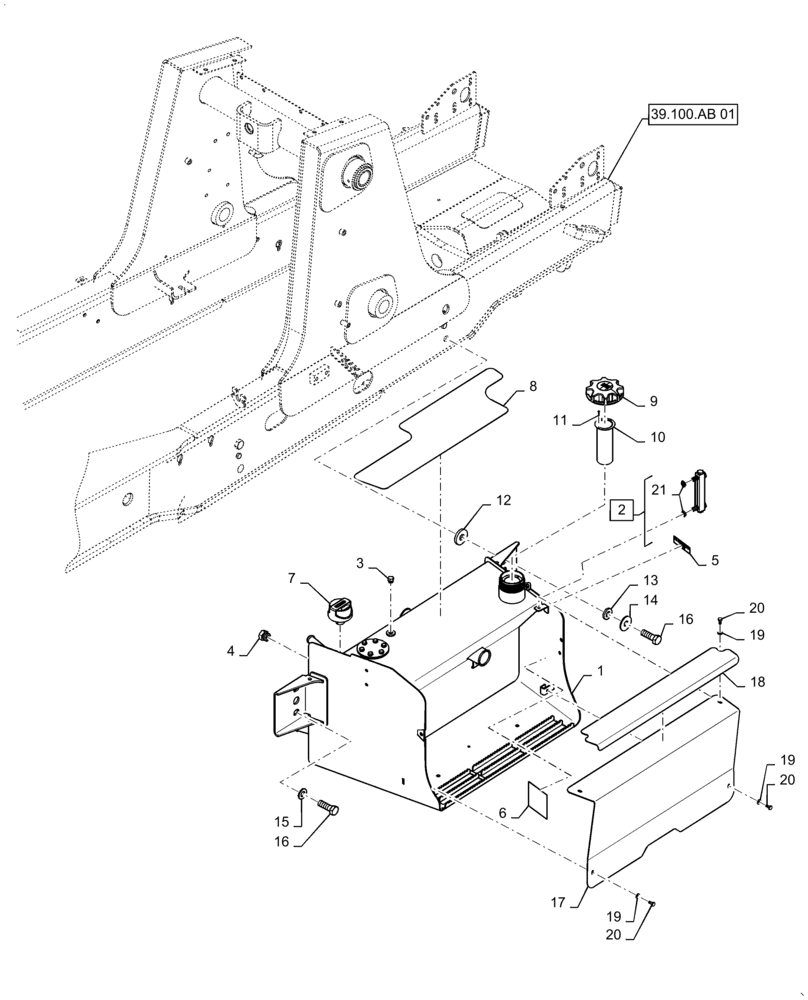

Запчасти Case 570N EP (35.300.AQ[01]) - HYDRAULIC TANK (35) - HYDRAULIC SYSTEMS

1

84480847

TANK,53L

Assembly, Hydraulic, Case Power Tan

1шт.

2

226456A1

LEVEL GAUGE

Hydraulic Fluid, Incl 21

1шт.

3

218-5155

PLUG,9/16" - 18 ORB

1шт.

4

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

5

321-229

DECAL

Hydraulic Fluid

1шт.

6

87673270

ADHESIVE STRIP

1шт.

7

84329587

BREATHER

Hydraulic Tank

1шт.

8

47447702

STRIP

1шт.

9

84298013

CAP,128.8mm D

Hydraulic Tank

1шт.

10

47713922

FILTER STRAINER

Hydraulic Oil Fill

1шт.

11

86625195

SCREW,Pan Head, #6 - 32 x 5/8"

Self Tapping

2шт.

12

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

Tank

1шт.

13

185926A1

SPACER,21mm x 40mm x 6.6mm Th

Tank

2шт.

14

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

Heat Treated

2шт.

15

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

16

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

4шт.

17

84281665

COVER

Battery Case Power Tan

1шт.

18

87719444

ANTI-SKID STRIP

1шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

20

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

21

9626944

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Incl in 2

4шт.
