(35.300.AB[01]) - HYDRAULIC COOLER & LINES, 4WD

Запчасти Case 570N EP (35.300.AB[01]) - HYDRAULIC COOLER & LINES, 4WD (35) - HYDRAULIC SYSTEMS

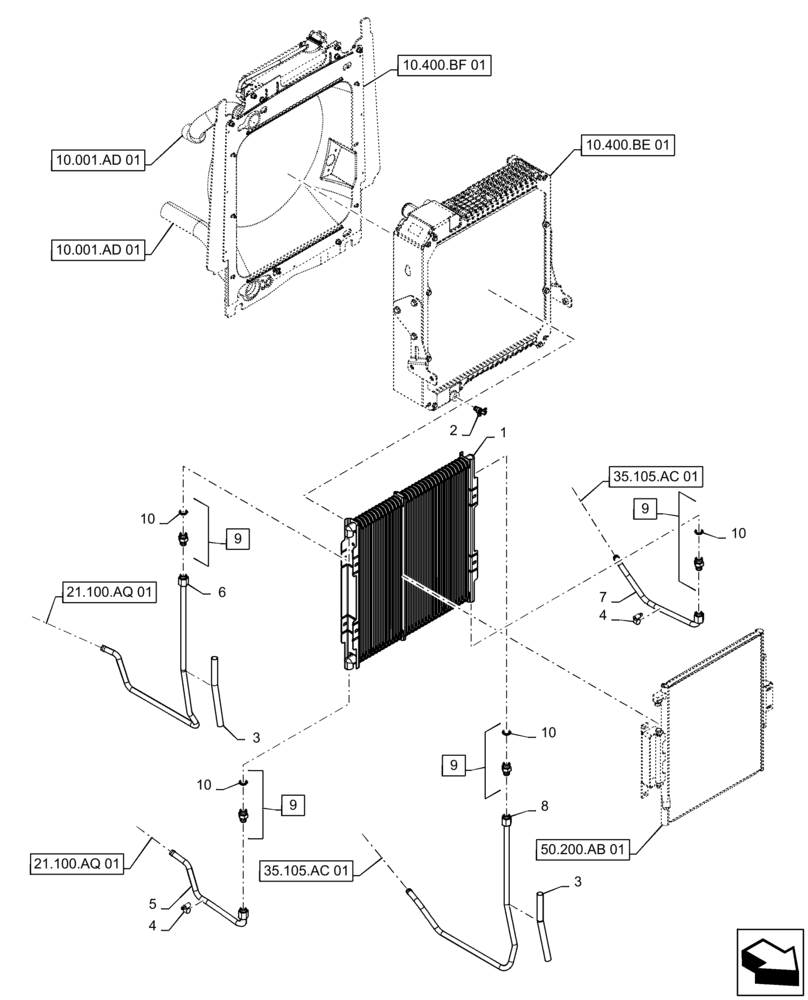

Схема запчастей Case 570N EP - (35.300.AB[01]) - HYDRAULIC COOLER & LINES, 4WD (35) - HYDRAULIC SYSTEMS
21.100.aq 01
4
1
35.105.ac 01
5
7
21.100.aq 01
8
10
10
35.105.ac 01
50.200.ab 01
9
10.001.ad 01
10.001.ad 01
10.400.bf 01
9
6
2
10.400.be 01
9
3
9
10
3
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87441876

OIL COOLER

Hydraulic

1шт.

2

IH76904

VALVE

Drain

1шт.

2

47819617

DRAINCOCK/TAP SUPPLY

W/Pre-appliedThread Sealant

1шт.

3

87311219

HOSE PROTECTION,16.80 mm ID x 250.00 mm

2шт.

4

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

5

47428710

TUBE

RH Lower Cooler

1шт.

6

47428709

TUBE

RH Upper Cooler

1шт.

7

47428711

TUBE

LH Lower Cooler

1шт.

8

47428712

TUBE

LH Upper Cooler

1шт.

9

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl 10

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.
