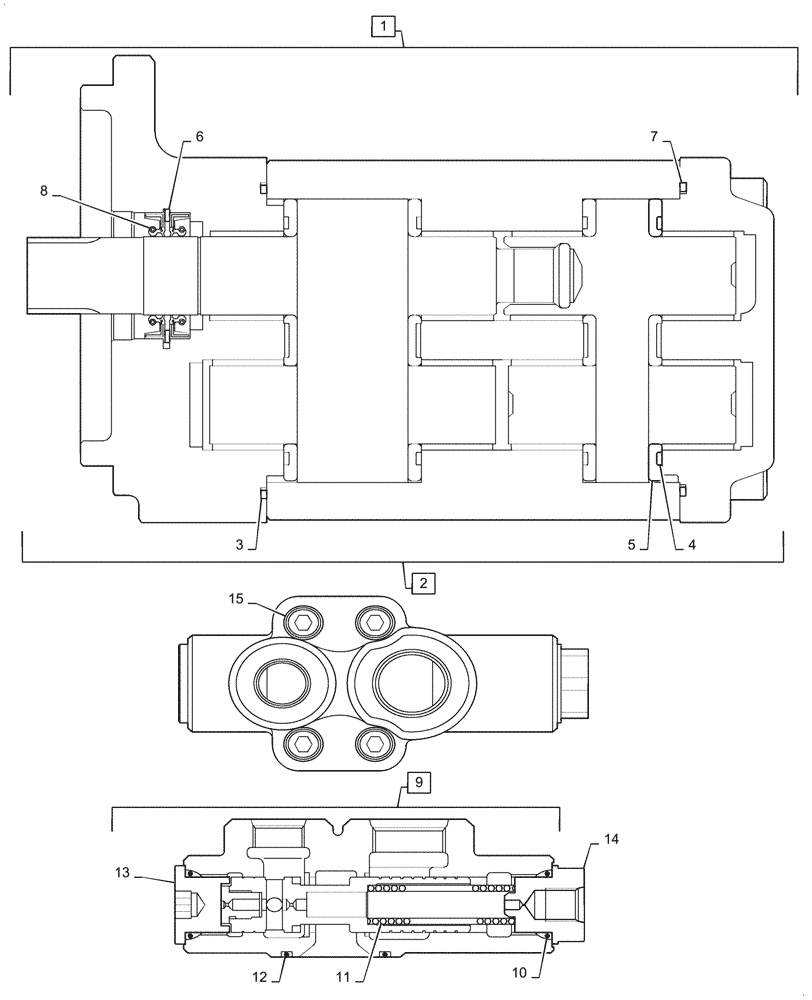

Запчасти Case 570N EP (35.106.AN[05]) - PTO HYDRAULIC PUMP, TANDEM - SHIMADZU (35) - HYDRAULIC SYSTEMS

1

47802753

HYDRAULIC PUMP

Tandem, PTO - Shimadzu, Incl 2 - 15

1шт.

2

47928307

REPAIR KIT

Hyd Pump, Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Gasket, Housing, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Backup, Incl in 2

4шт.

5

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

4шт.

6

NSS

NOT SOLD SEPARAT

Snap Ring, Incl in 2

1шт.

7

47928312

GASKET

Backplate, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Lip, Incl in 2

1шт.

9

47858395

SERVICE KIT

Priority Valve, Incl 10 - 13

1шт.

10

47858364

O-RING

2шт.

11

47858437

SPRING

Priority Spool

1шт.

12

47858354

O-RING,3.1mm Thk x 34.4mm ID

1шт.

13

47858430

PLUG

Priority Spool

1шт.

14

47858423

PLUG

Orifice

1шт.

15

10589621

SCREW,Hex Skt, M6 x 80mm, Cl 8.8

4шт.
