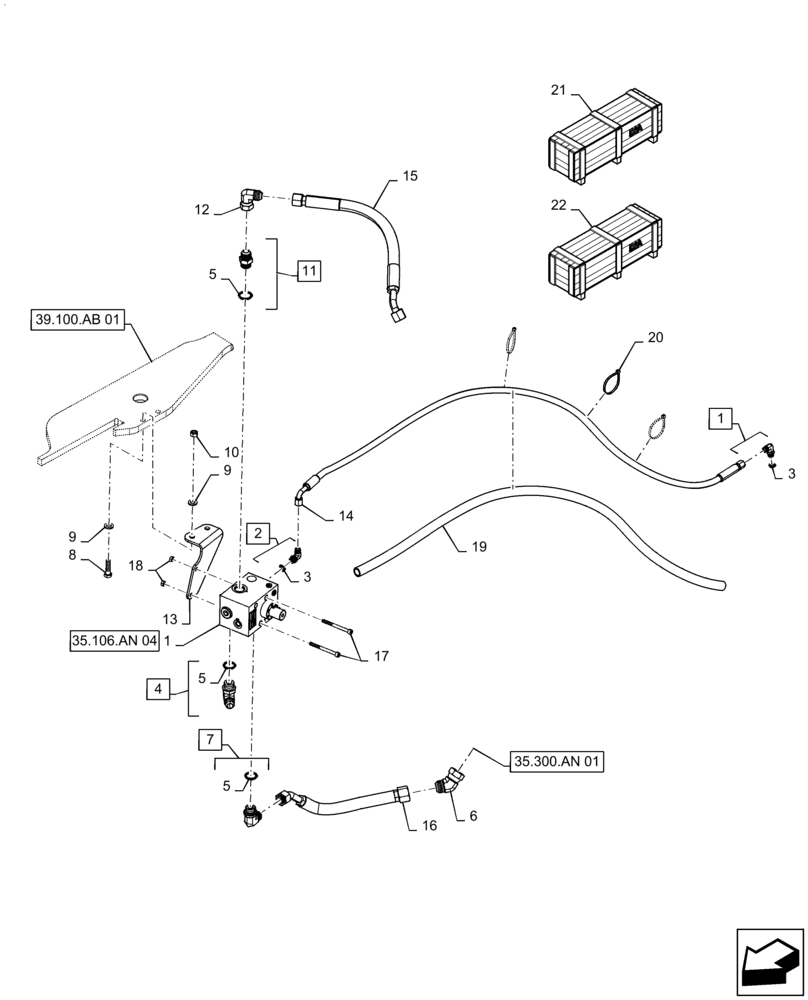

Запчасти Case 570N EP (35.106.AN[03]) - VAR - 745137 - PTO AUXILIARY CONTROL VALVE & LINES (35) - HYDRAULIC SYSTEMS

1

47569744

VALVE

PTO, Open Center

1шт.

See Fig 35.106.AN (04) For Service Parts

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 3

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Incl 5

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

6

86512961

45 ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1шт.

7

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 5

1шт.

8

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

10

337475

NUT,M12, Cl 10

2шт.

11

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 5

1шт.

12

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

13

47721226

BRACKET

PTO Valve Mounting

1шт.

14

47616439

HYDRAULIC HOSE,10mm ID x 1760mm L, SAE 100R16

Drain

1шт.

15

47616525

HYDRAULIC HOSE,19mm ID x 580mm L, SAE 100R16

Flow Control to Loader Valve Return, 3SP

1шт.

16

47723531

HYDRAULIC HOSE,19mm ID x 375mm L, SAE 100R6

Loader Valve to Flow Control Valve

1шт.

17

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

18

43362

NUT,M8 x 1.25, Cl 10

2шт.

19

87491619

GUARD,19.1mm ID x 1400mm L

Hose

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

21

47618448

KIT

DIA Kit, PTO (Order from Wholegoods Only) Incl 1 - 18

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.

22

47634751

KIT

DIA Kit, Hi Flow Aux without PTO (Order from Wholegoods Only) Incl 1 - 18

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
