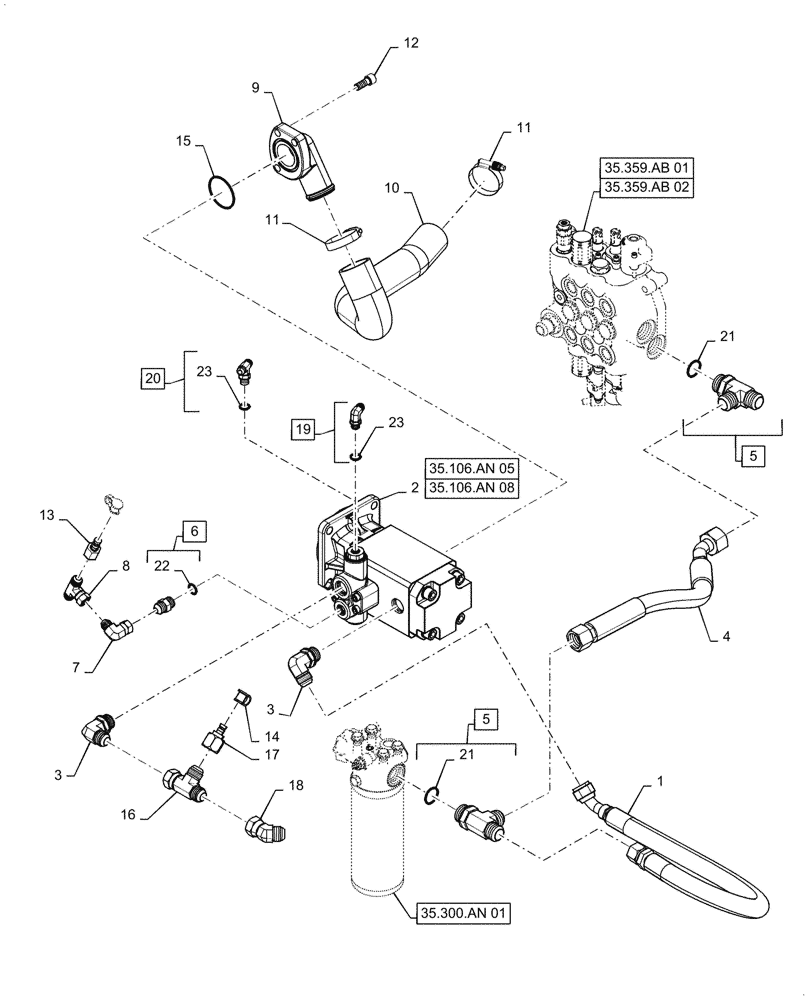

Запчасти Case 570N EP (35.106.AD[02a]) - VAR - 745163 - PTO READY PUMP - SHIMADZU (35) - HYDRAULIC SYSTEMS

1

84120336

HOSE ASSY.,19mm ID x 825mm L, SAE 100R17

PTO Pump to Filter

1шт.

2

47802753

HYDRAULIC PUMP

Tandem, PTO - Shimadzu, Years: 09-JUL-16-29-OCT-16

1шт.

2

48030096

HYDRAULIC PUMP

Tandem, PTO - Shimadzu, Start Year: 29-OCT-16

1шт.

3

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

4

47613181

HOSE,25mm ID x 575mm L, SAE 100R4

Return

1шт.

5

86513022

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

Incl 21

2шт.

6

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 22

1шт.

7

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

8

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

87727923

FLANGE

PTO Pump Inlet

1шт.

10

47982898

HYDRAULIC HOSE

PTO Pump Suction

1шт.

11

259044A1

CLAMP

2шт.

12

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

13

192834A1

COUPLING

1шт.

14

H434163

DUST CAP

1шт.

15

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

16

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

17

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

18

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

19

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 23

1шт.

20

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 23

1шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
