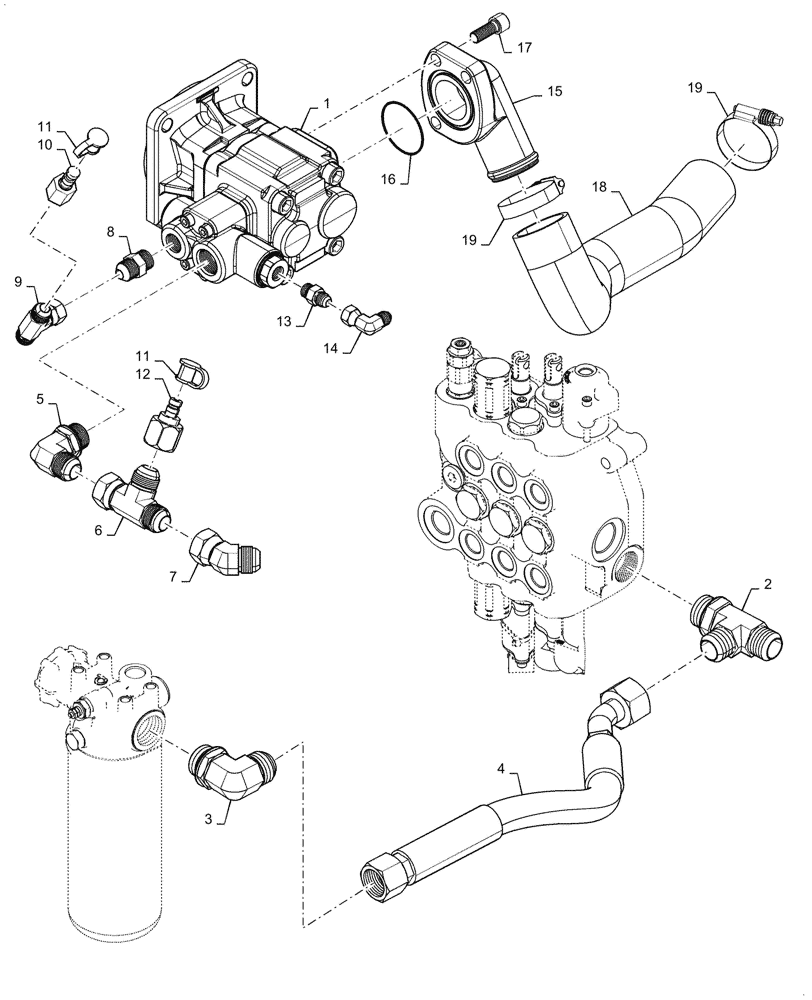

Запчасти Case 570N EP (35.104.AA[04]) - STANDARD PUMP &, FITTING - NO PTO (35) - HYDRAULIC SYSTEMS

1

87434672

HYDRAULIC PUMP,52.4 CC

Single, Parker

1шт.

1

47801616

HYDRAULIC PUMP,52.2 CC

Single, Shimadzu

1шт.

1

48030083

HYDRAULIC PUMP,52.2CC

Single, Shimadzu

1шт.

2

86513022

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

4

47613181

HOSE,25mm ID x 575mm L, SAE 100R4

Return

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

6

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

7

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

8

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

9

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

192834A1

COUPLING

Diagnostic

1шт.

11

H434163

DUST CAP

2шт.

12

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Diagnostic

1шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

14

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

15

87727923

FLANGE

1шт.

16

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

17

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

18

47865750

HYDRAULIC HOSE,50.8mm ID

Suction

1шт.

19

259044A1

CLAMP

3шт.
