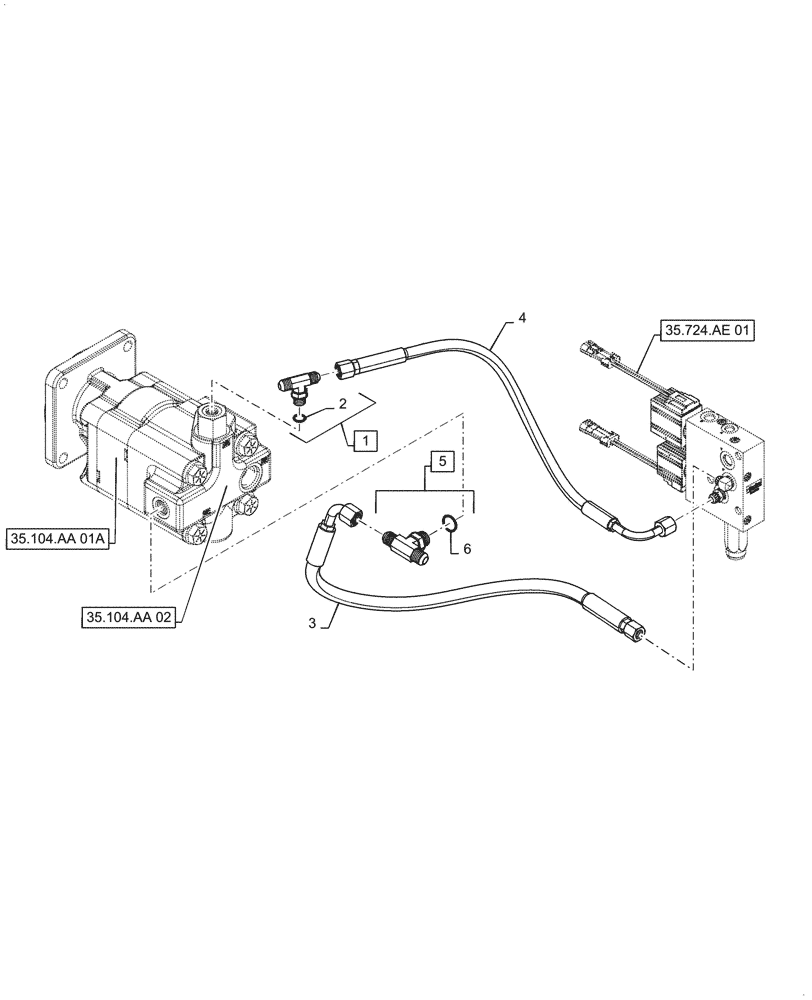

Запчасти Case 570N EP (35.104.AA[03a]) - PUMP, LOADER COUPLER VALVE, HYD. LINE - W/SHIMADZU PUMP - START APR 2016 (35) - HYDRAULIC SYSTEMS

1

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Used on Shimadzu Pump, Incl 2, Start Year: 01-MAR-16

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

47915763

HYDRAULIC HOSE,10mm ID, 618mm L, SAE100R16 type S

Pump To Coupler, Pressure, Used on Shimadzu Pump, Start Year: 01-MAR-16

1шт.

4

47916272

HYDRAULIC HOSE

Pump To Coupler, Load Sense, Used on Shimadzu Pump, Start Year: 01-MAR-16

1шт.

5

87029963

HYD CONNECTOR,3/4" Male JIC x 3/4" Male JIC x 3/4" Female JIC

Used on Shimadzu Pump, Start Year: 01-MAR-16

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
