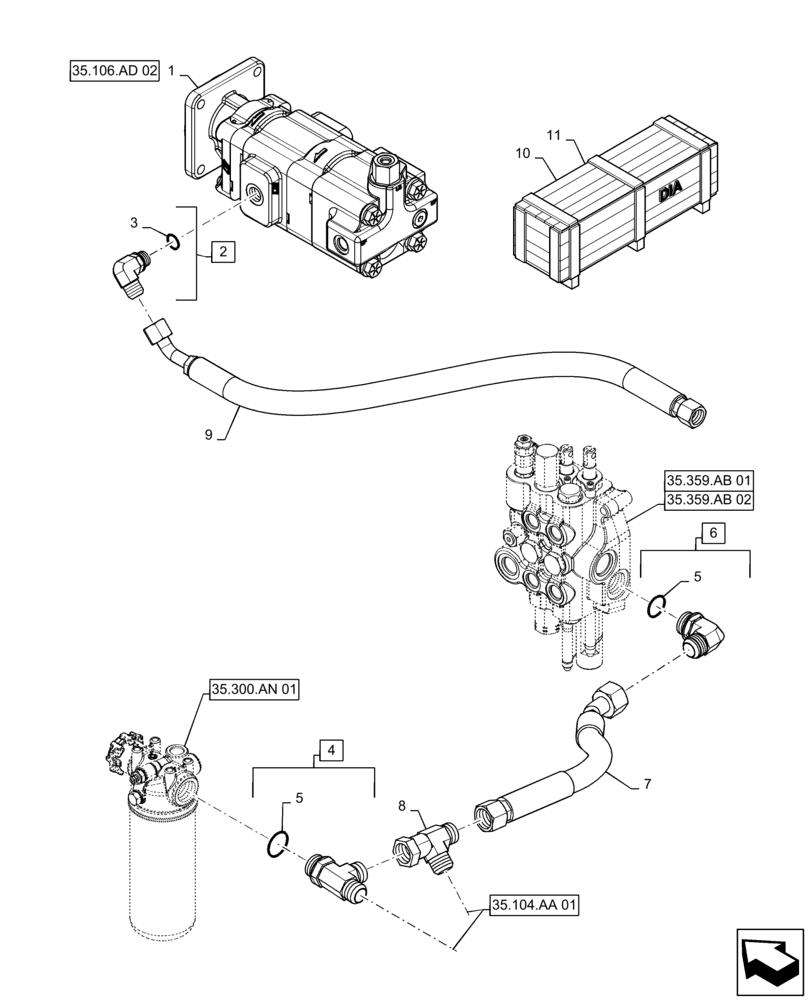

Запчасти Case 570N EP (35.104.AA[02]) - VAR - 745437 - PARKER PTO PUMP & HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

47521948

PUMP

Hydraulic, Tandem - Parker, Years: -09-JUL-16

1шт.

See Fig 35.106.AD (02) For Service Parts

1шт.

2

144123

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

Incl 3, Years: -09-JUL-16

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 2, Years: -09-JUL-16

1шт.

4

86513022

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

Incl 5, Years: -09-JUL-16

1шт.

5

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Incl in 5 & 6, Years: -09-JUL-16

1шт.

6

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 5, Years: -09-JUL-16

1шт.

7

84483645

HYDRAULIC HOSE,25mm ID x 508mm L, SAE 100R4

Return, Years: -09-JUL-16

1шт.

8

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

, Years: -09-JUL-16

1шт.

9

47614849

HYDRAULIC HOSE,19mm ID x 885mm L, SAE 100R16

, Years: -09-JUL-16

1шт.

10

47618448

KIT

DIA Kit, PTO (Order from Wholegoods Only) Incl 2 - 7

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.

11

47634751

KIT

DIA Kit, Hi Flow Aux without PTO (Order from Wholegoods Only) Incl 4 - 7

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
