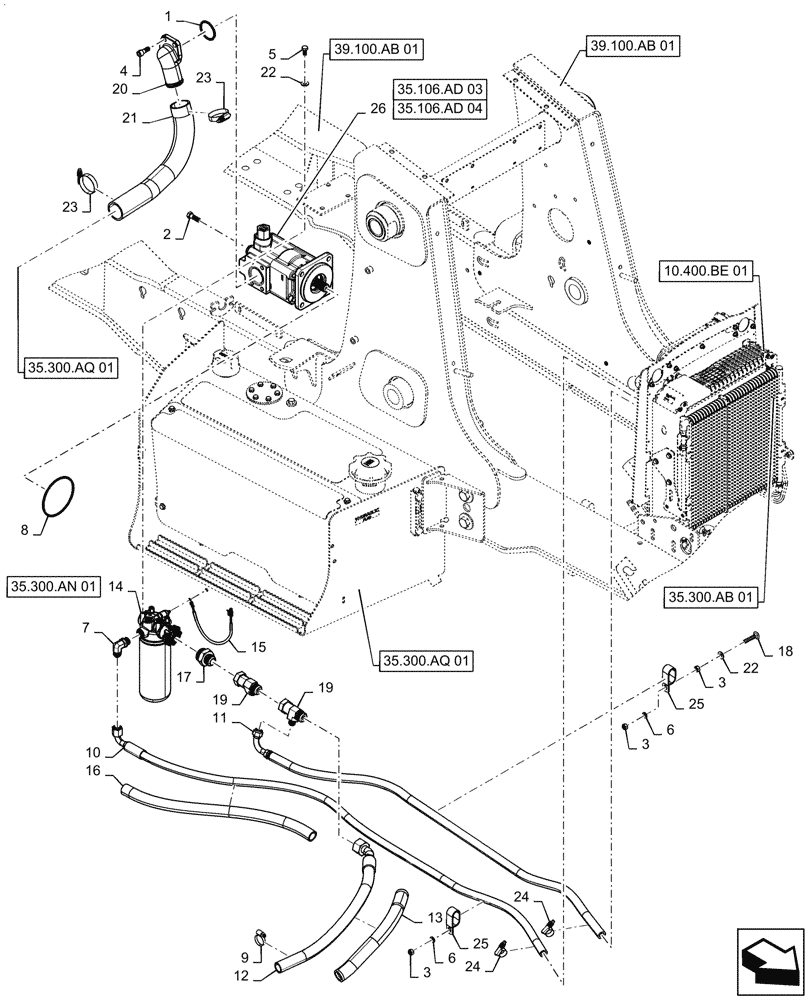

Запчасти Case 570N EP (35.104.AA[01a]) - HYDRAULIC SYSTEM LINES AND FITTINGS, 4WD - W/SHIMADZU PUMP - START APR 2016 (35) - HYDRAULIC SYSTEMS

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

2

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

4

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

7

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

8

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

9

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

10

47934325

HYDRAULIC HOSE,16mm ID x 1860mm L

Hydraulic Cooler Supply, Used with Shimadzu Pump, Start Year: 01-MAR-16

1шт.

11

47603866

HYDRAULIC HOSE,16mm ID x 1560mm

Hydraulic Cooler Outlet to Filter

1шт.

12

47603890

HYDRAULIC HOSE,25mm ID x 705mm

Main Hydraulic Return

1шт.

13

47603901

HOSE PROTECTION,34mm ID x 39.5mm OD x 400mm

Guard

1шт.

14

84248499

HYDRAULIC OIL FILTER

Complete

1шт.

See Figure 35.300.AN (01) For Service Parts

1шт.

15

84292224

WIRE HARNESS

Hydraulic Filter Restriction Jumper

1шт.

16

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

17

86504080

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

18

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

1шт.

19

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

2шт.

20

87727923

FLANGE

Pump Inlet, Used with Shimadzu Pump, Start Year: 01-MAR-16

1шт.

21

47865750

HYDRAULIC HOSE,50.8mm ID

Pump Inlet, Used with Shimadzu Pump, Start Year: 01-MAR-16

1шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

5шт.

23

259044A1

CLAMP

Hose

2шт.

24

328186A1

HOSE CLAMP,400mm L

Constant Torque

2шт.

25

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

26

47801616

HYDRAULIC PUMP,52.2 CC

Shimadzu Pump, Start Year: 01-MAR-16

1шт.
