Запчасти Case 570N EP (35.104.AA[01]) - HYDRAULIC SYSTEM LINES AND FITTINGS, 4WD - W/PARKER PUMP (35) - HYDRAULIC SYSTEMS

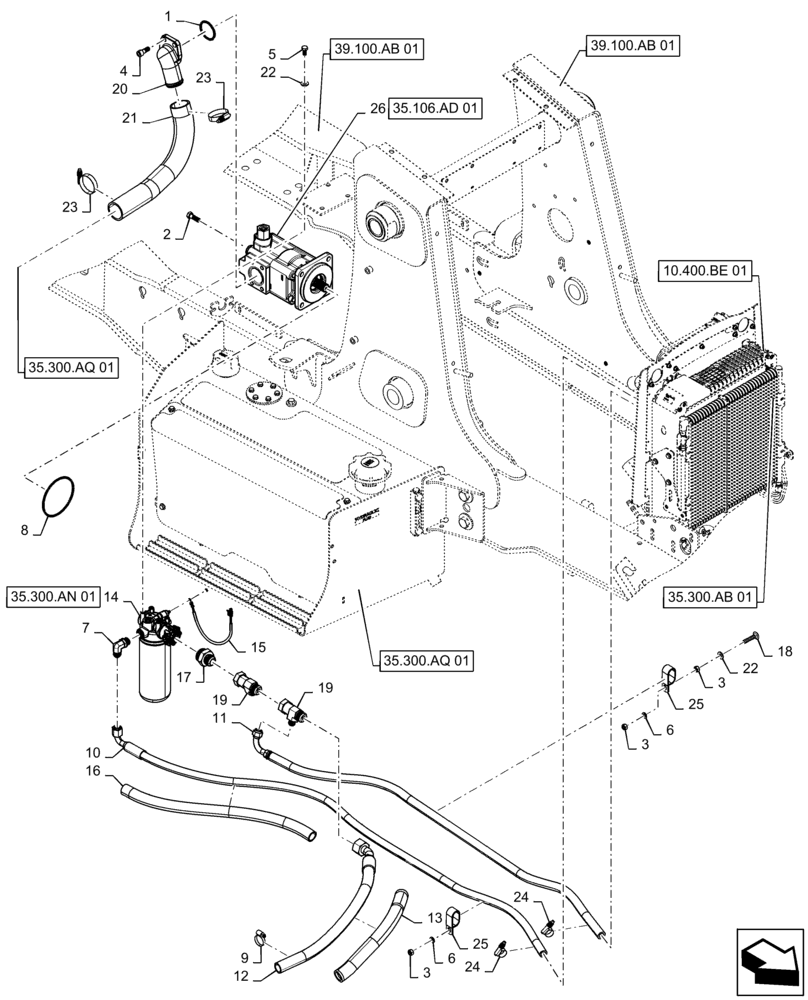

Схема запчастей Case 570N EP - (35.104.AA[01]) - HYDRAULIC SYSTEM LINES AND FITTINGS, 4WD - W/PARKER PUMP (35) - HYDRAULIC SYSTEMS
23
6
9
25
13
35.106.ad 01
35.300.aq 01
26
3
18
7
10
15
16
23
10.400.be 01
14
39.100.ab 01
5
12
24
11
1
19
35.300.ab 01
3
4
22
6
21
25
8
17
20
35.300.aq 01
24
19
22
2
39.100.ab 01
35.300.an 01
3

Артикул

Название

Примечание

Количество

1

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

2

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

4

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

7

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

8

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

9

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

10

47603859

HYDRAULIC HOSE,16mm ID x 1834mm L

Hydraulic Cooler Supply

1шт.

11

47603866

HYDRAULIC HOSE,16mm ID x 1560mm

Hydraulic Cooler Outlet to Filter

1шт.

12

47603890

HYDRAULIC HOSE,25mm ID x 705mm

Main Hydraulic Return

1шт.

13

47603901

HOSE PROTECTION,34mm ID x 39.5mm OD x 400mm

Guard

1шт.

14

84248499

HYDRAULIC OIL FILTER

Complete

1шт.

See Figure 35.300.AN (01) For Service Parts

1шт.

15

84292224

WIRE HARNESS

Hydraulic Filter Restriction Jumper

1шт.

16

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

17

86504080

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

18

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

1шт.

19

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

2шт.

20

87592658

FLANGE

Pump Inlet - Parker Pump

1шт.

21

87627903

HYDRAULIC HOSE,50.80 mm ID x mm, SAE 30R7

Suction - Parker Pump

1шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

5шт.

23

259044A1

CLAMP

Hose

2шт.

24

328186A1

HOSE CLAMP,400mm L

Constant Torque

2шт.

25

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

26

87434672

HYDRAULIC PUMP,52.4 CC

Single - Parker Pump

1шт.

See Fig 35.106.AD (01) For Service Parts

1шт.

26

87434672R

REMAN-HYD PUMP

Single, 52.4CC/REV

1шт.

26

87434672C

CORE-HYDRAULIC PUMP

Return Number

1шт.

Выбрано товаров: 30
