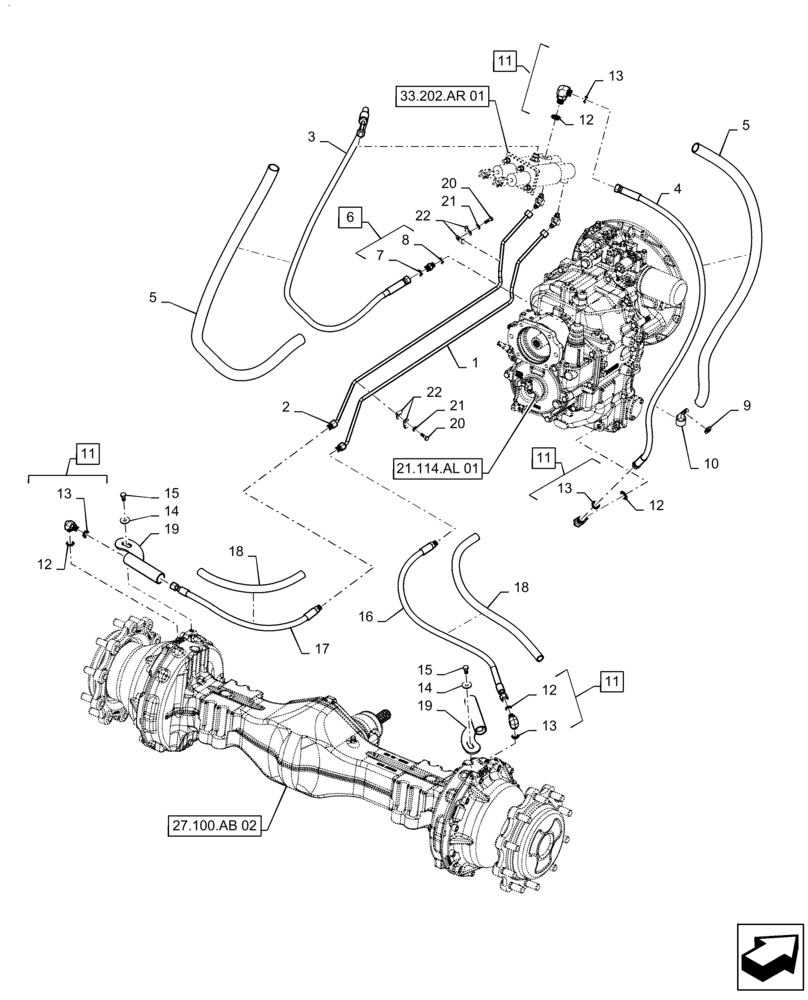

Запчасти Case 570N EP (33.202.BO[01]) - BRAKE LINE, 4WD (33) - BRAKES & CONTROLS

1

84329361

HYD TUBE

Right Brake

1шт.

2

84329362

HYD TUBE

Left Brake

1шт.

3

87603513

BRAKE LINE,9.5mm ID x 1525mm L

Supply

1шт.

4

87603514

BRAKE LINE,9.5mm ID x 1425mm L

Return

1шт.

5

87491619

GUARD,19.1mm ID x 1400mm L

Hose

2шт.

6

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 7 - 8

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 6

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 6

1шт.

9

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

10

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

1шт.

11

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 12 - 13

4шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 11

4шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 11

4шт.

14

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

16

84258167

HOSE ASSY.,10mm ID x 915mm L

Right Brake

1шт.

17

84258169

HOSE ASSY.,10mm ID x 715mm L

Left Brake

1шт.

18

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

Guard

2шт.

19

84472637

GUARD

Hose Gaurd

2шт.

20

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

21

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

22

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

4шт.
