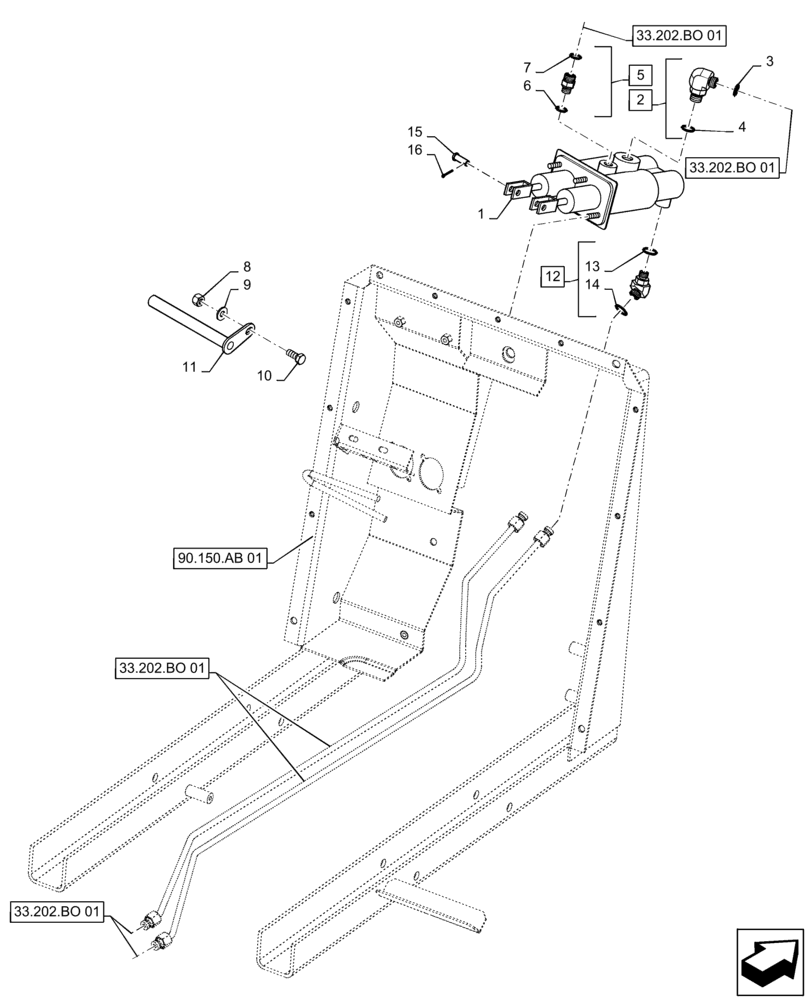

Запчасти Case 570N EP (33.202.AR[01]) - MASTER CYLINDER, 2WD (33) - BRAKES & CONTROLS

1

84369307

BRAKE CYLINDER,35mm Stroke

Master Boost Ratio Four

1шт.

2

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

Incl 3 - 4

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Incl in 2

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 2

1шт.

5

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 6 - 7

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Incl in 5

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 5

1шт.

8

412141

NUT,M10 x 1.5, Cl 8

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

10

BER43139

BOLT

1шт.

11

D140035

SHAFT,180mm L

Lever Pivot

1шт.

12

87562344

ELBOW

Incl 13 - 14

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Incl in 12

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Incl in 12

1шт.

15

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

16

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.
