(27.120.AF[01]) - REAR AXLE FINAL DRIVE PLANETARY

Запчасти Case 570N EP (27.120.AF[01]) - REAR AXLE FINAL DRIVE PLANETARY (27) - REAR AXLE SYSTEM

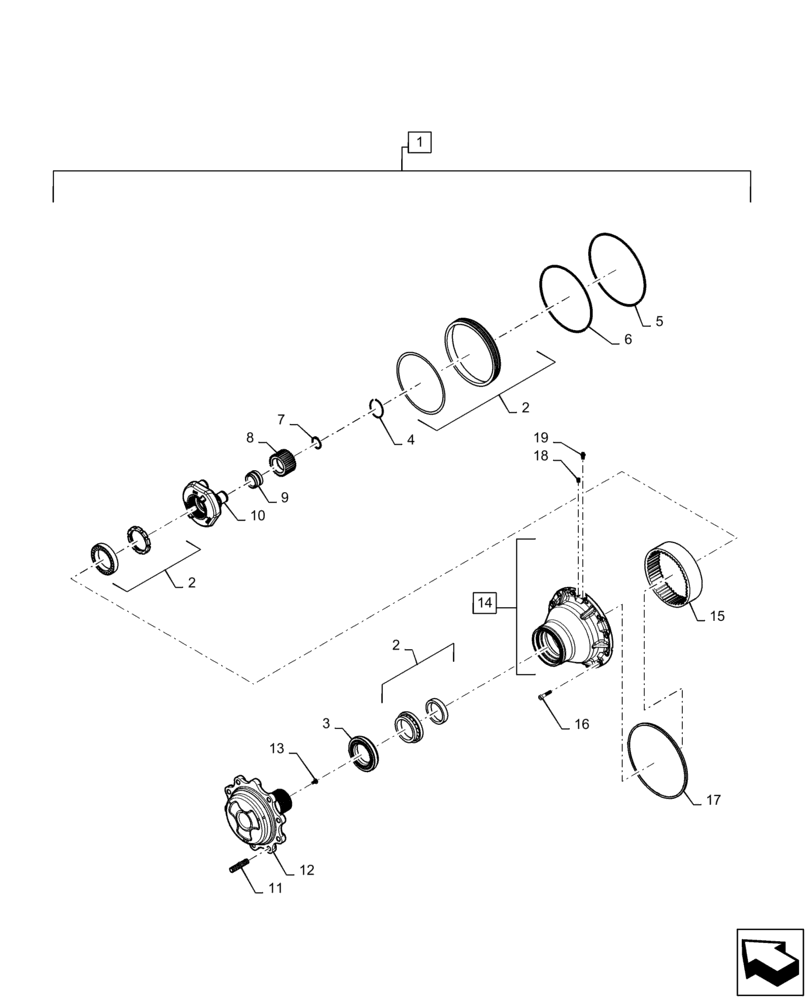

Схема запчастей Case 570N EP - (27.120.AF[01]) - REAR AXLE FINAL DRIVE PLANETARY (27) - REAR AXLE SYSTEM
6
1
18
10
8
16
19
11
14
2
12
17
3
15
13
5
2
4
9
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47566688

HUB

Axle, Wheel End Sub Assembly, Incl 2 - 19

1шт.

2

47579403

KIT

Kit, MR1 Ring Nut

1шт.

3

452140A1

SEALING RING,150mm ID x 180mm OD x 14.5mm W

1шт.

4

87708453

SNAP RING

Wheel Hub

1шт.

5

371144A1

O-RING

Piston, Exterior

1шт.

6

87708438

O-RING

1шт.

7

800-1150

SNAP RING,M50, Ext

Exterior

3шт.

8

87708443

GEAR

Rear Axle

3шт.

9

87708444

ROLLER BEARING

3шт.

10

87708452

PLANET CARRIER

1шт.

11

D142986

STUD,88mm L

Bolt

10шт.

12

87708445

FLANGE

Rear Axle

1шт.

13

K395093

HEADED PIN,12mm OD x 15mm L

Lock

1шт.

14

87708466

GEAR SET

Rear Axle Wheel Hub, Incl 15

1шт.

15

87708467

RING GEAR

Rear Axle, Incl in 14

1шт.

16

403955A1

BOLT

12шт.

17

87711038

RING

Wheel Hub

1шт.

18

E135809

PLUG

1шт.

19

E135810

VENTING SCREW

Bleeder

1шт.
