Артикул
Название
Примечание
Количество
1
86990836

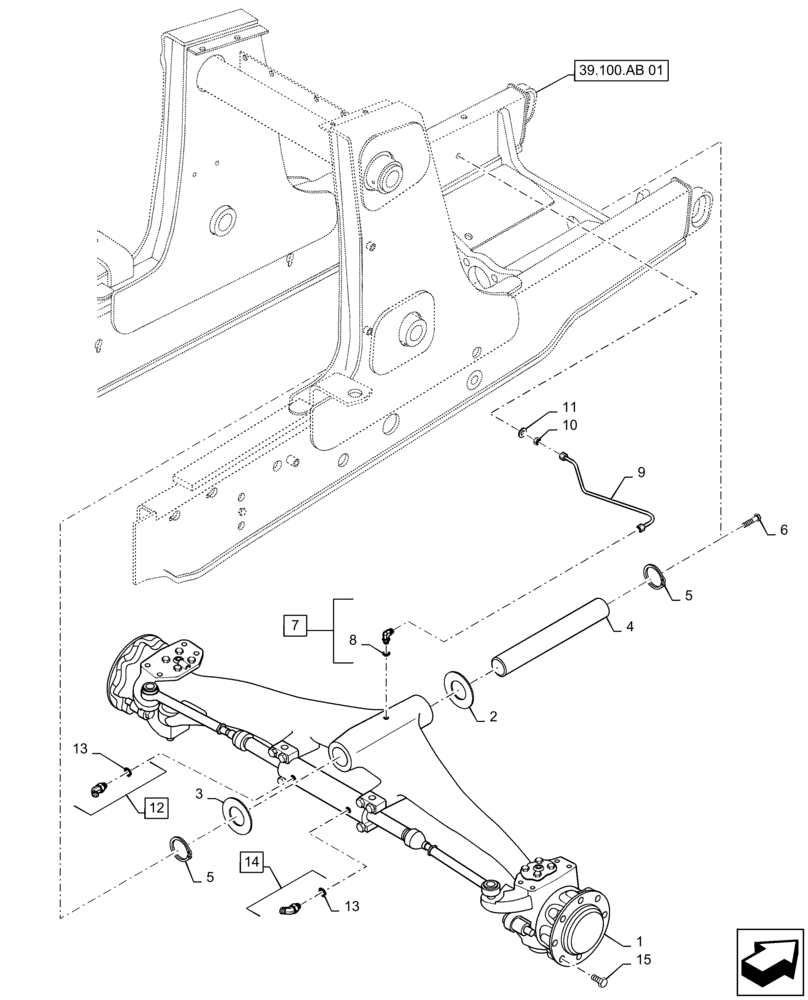

FRONT AXLE
Two Wheel Drive
1шт.
3
D123684
WASHER,52.3mm ID x 114mm OD x 4.78mm Thk
2 - 1/2" x 4 - 1/2" x 3/16"
1шт.
4
391451A1
PIVOT PIN,50mm OD x 431.5mm L
Axle Pivot
1шт.
5
86625154
SNAP RING,M50, Ext
2шт.
7
216773
90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring
Incl 8
1шт.
8
165202
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Used on Ref 7
1шт.
9
87572760
HOSE ASSY.,6.4mm ID x 533mm L
Lubrication Line
1шт.
10
76085536
NUT,1/8-27 NPSM
1шт.
11
87655046
SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk
1шт.
12
218-5529
ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC
Incl 13
1шт.
13
238-6008
O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro
Used on Ref 12, 14
2шт.
14
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
Incl 13
1шт.
15
A38208
WHEEL BOLT,5/8-18 UNF Class 2A
16шт.
Выбрано товаров: 15
