Запчасти Case 570N EP (25.108.AG[01]) - FRONT AXLE STEERING KNUCKLE, 4WD (25) - FRONT AXLE SYSTEM

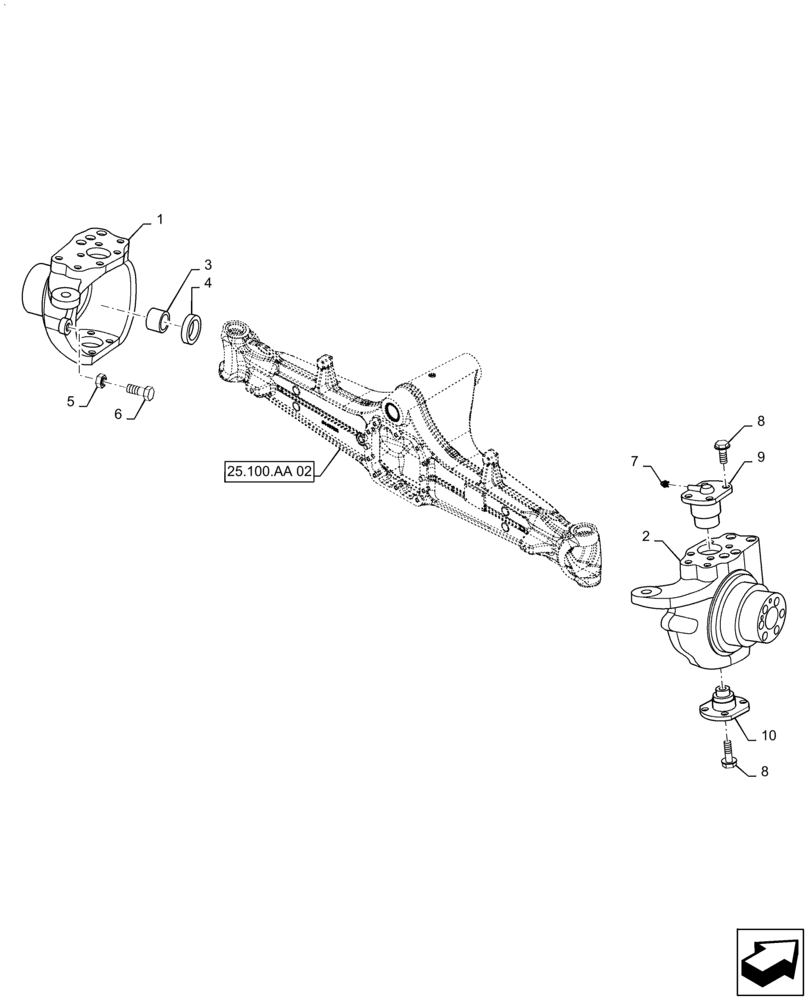

Схема запчастей Case 570N EP - (25.108.AG[01]) - FRONT AXLE STEERING KNUCKLE, 4WD (25) - FRONT AXLE SYSTEM
1
9
8
4
2
8
7
6
10
3
25.100.aa 02
5

Артикул

Название

Примечание

Количество

1

84497943

STEERING KNUCKLE

LH

1шт.

2

84497941

STEERING KNUCKLE

RH

1шт.

3

84469400

BRONZE BUSHING,45mm ID x 50mm OD x 30mm L

45mm x 50mm x 30mm

2шт.

4

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

5

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

M18

2шт.

6

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

7

84351730

FITTING,M10 x 1

M10 - 1

2шт.

8

47723589

SERRATED BOLT,Hex Flg, M12 x 1.75 x 33mm, Cl 12.9, Full Thd

16шт.

9

84483732

PIN,34.9mm / 45mm OD x 44.2mm L

Steering Knuckle, Top

2шт.

10

84527633

PIN,25mm / 45mm OD x 39.9mm L

Steering Knuckle, Bottom

2шт.

Выбрано товаров: 10
