(25.108.AA[01]) - FRONT AXLE HALF SHAFT, 4WD

Запчасти Case 570N EP (25.108.AA[01]) - FRONT AXLE HALF SHAFT, 4WD (25) - FRONT AXLE SYSTEM

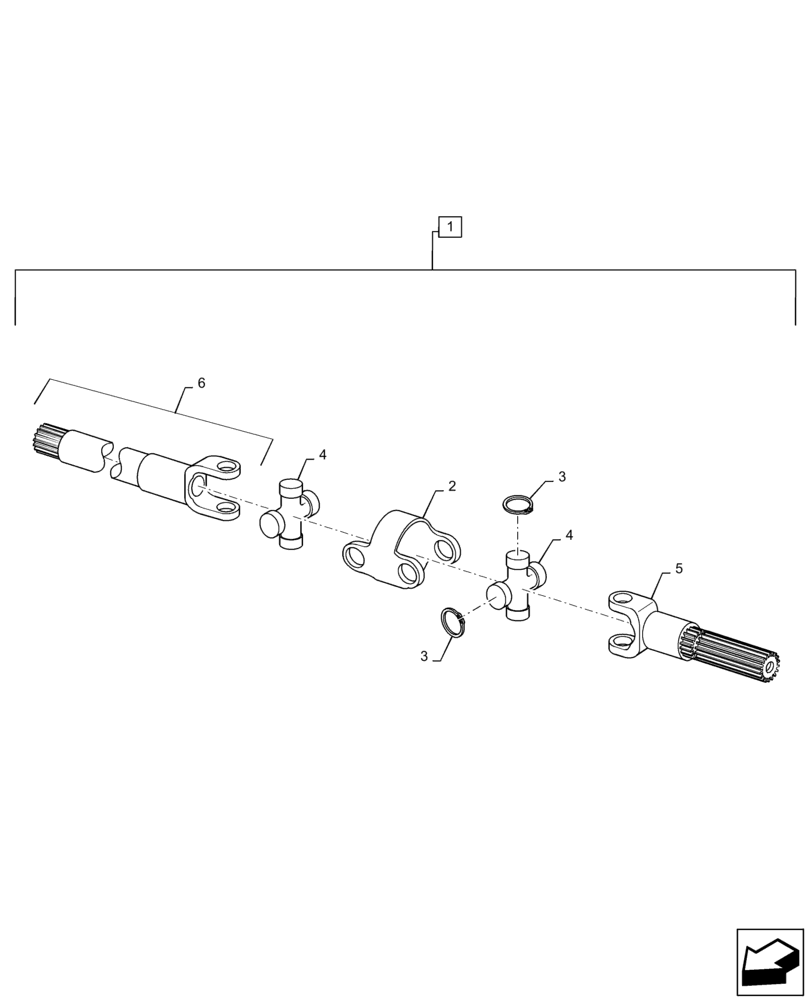

Схема запчастей Case 570N EP - (25.108.AA[01]) - FRONT AXLE HALF SHAFT, 4WD (25) - FRONT AXLE SYSTEM
4
5
2
3
6
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47438514

HALF SHAFT,936.7mm L

Incl 2 - 6

1шт.

2

84258432

UNIVERSAL JOINT

Central

1шт.

3

274234

SNAP RING,M27, Int

Retaining

8шт.

4

84258434

U-JOINT SPIDER

Drive Shaft

2шт.

5

47438518

SHAFT,12T, 167.7mm L

Short, Wheel Side

1шт.

6

84523241

HALF SHAFT,705mm L

Long, Differential Side

1шт.
