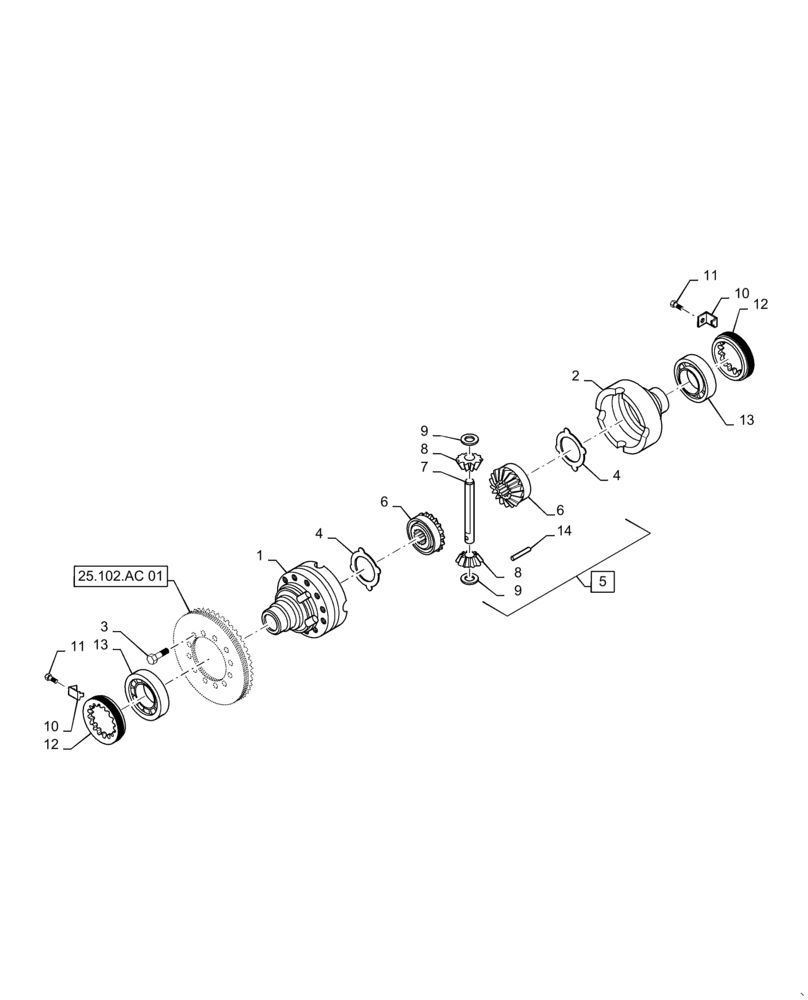

Запчасти Case 570N EP (25.102.AD[01]) - FRONT AXLE DIFFERENTIAL, 4WD, WITHOUT PTO (25) - FRONT AXLE SYSTEM

1

84540882

HOUSING

RH Differential

1шт.

2

84540883

HOUSING

LH Differential

1шт.

3

47446841

BOLT,Hex, M10 x 1.5 x 75mm, Class 12.9

12шт.

4

84529087

CLUTCH DISC,49.1mm ID x 85mm OD x 1.5mm Thk

Seperator

2шт.

5

47593452

DIFFERENTIAL ASSY

Differential, Service Replacement, Incl 6 - 9, 14

1шт.

6

47431451

GEAR,18T

Machined Gear, Side, Incl in 5

2шт.

6

47777025

GEAR,18T

Forged Gear, Side, Incl in 5

2шт.

7

84268545

PIN,21.9mm OD x 122.9mm L

Pinion Gear Shaft, Incl in 5

1шт.

8

47431450

PINION,12T

Machined Pinion Gear, Incl in 5

2шт.

8

47777024

PINION,12T

Forged Pinion Gear, Incl in 5

2шт.

9

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

Plate, Incl in 5

2шт.

10

87748532

RETAINER

Retainer

2шт.

11

84273742

BOLT,Hex, Lock, M8 x 1.25 x 16mm, Cl. 10.9

2шт.

12

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.

13

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

14

84268547

PIN,6.99mm OD x 61.5mm L

Incl in 5

1шт.
