Запчасти Case 570N EP (25.102.AC[01]) - FRONT AXLE, RING & PINION, 4WD, WITHOUT PTO (25) - FRONT AXLE SYSTEM

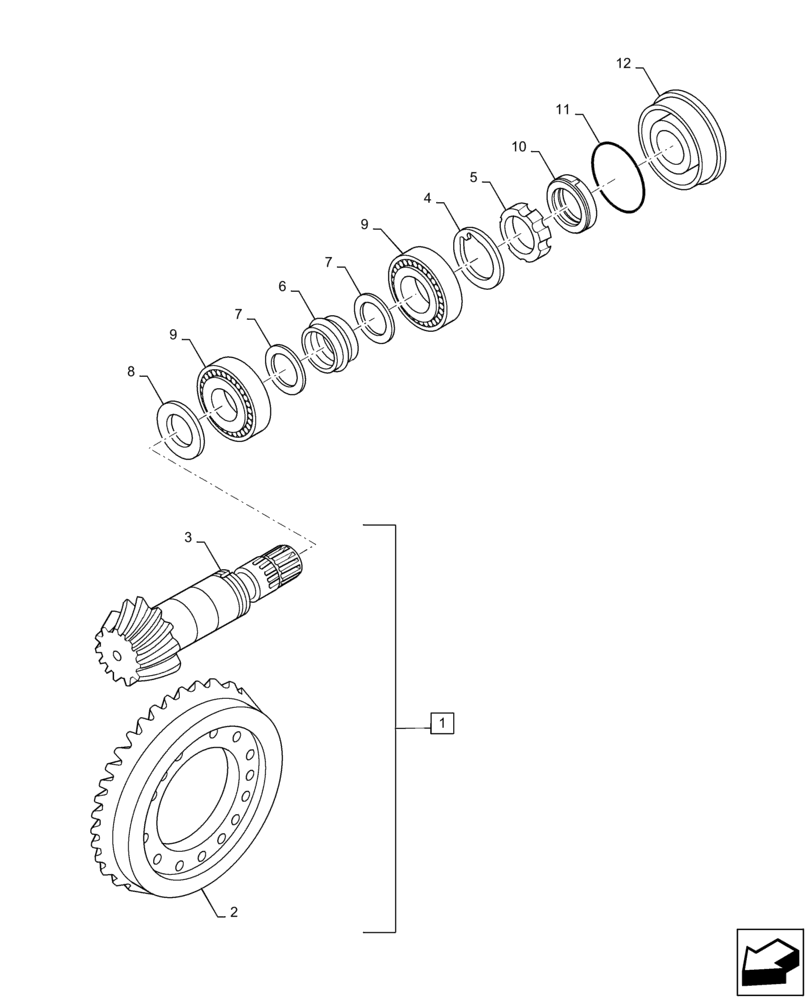

Схема запчастей Case 570N EP - (25.102.AC[01]) - FRONT AXLE, RING & PINION, 4WD, WITHOUT PTO (25) - FRONT AXLE SYSTEM
2
7
8
7
9
5
1
9
3
6
4
10
11
12

Артикул

Название

Примечание

Количество

1

84528211

BEVEL GEAR,16T Pinion / 32T Gear

32T Ring and 16T Pinion, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

32T Ring Gear, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

16T Pinion Gear, Incl in 1

1шт.

4

84366909

LOCK WASHER,40.85mm ID x 61.75mm OD x 2mm Thk

Plate

1шт.

5

84274691

NUT,M40 x 1.5

Ring

1шт.

6

84299341

SLEEVE,42.15mm ID x 50.5mm OD x 18.5mm L

Collapsible

1шт.

7

84528635

WASHER,40.5mm ID x 52mm OD x 4.8mm Thk

Retainer

2шт.

8

84299343

WASHER,41.5mm ID x 63mm OD x 2.5mm Thk

1шт.

9

84557103

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

Roller

2шт.

10

84258508

SEAL,35mm ID x 52mm OD x 18.2mm Thk

Ring

1шт.

11

638-54825

O-RING,3.55mm Thk x 82.5mm ID, Cl 5, 75 Duro

1шт.

12

84318880

HOUSING

Differential

1шт.

Выбрано товаров: 12
