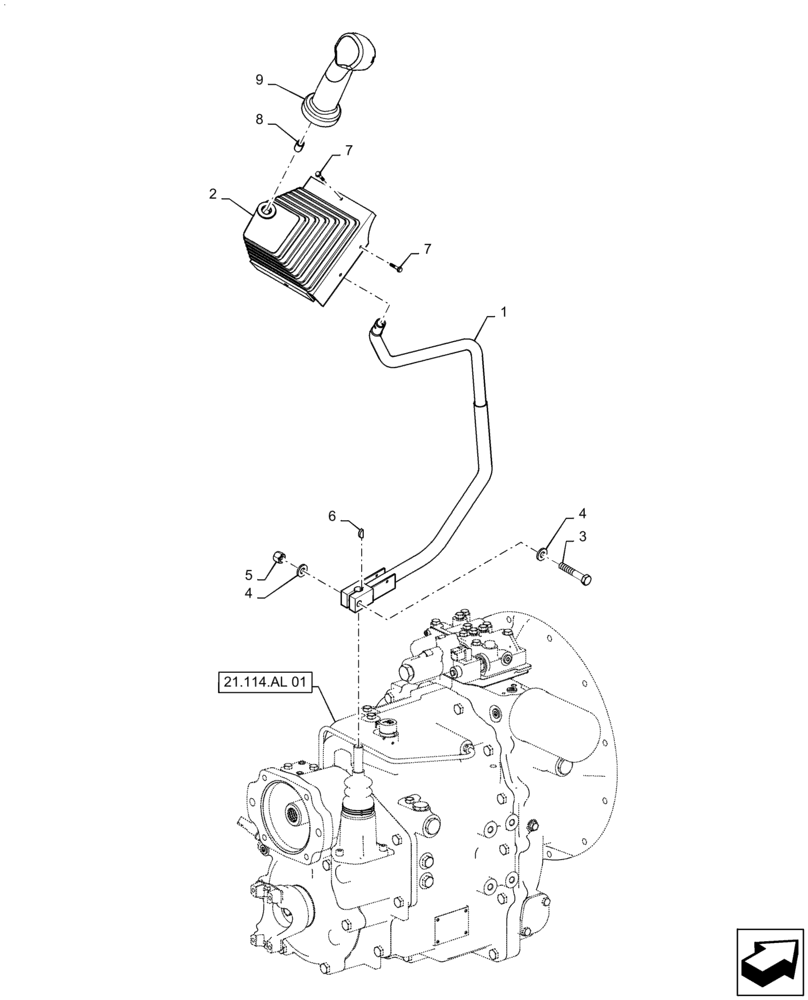

Запчасти Case 570N EP (21.126.AB[01]) - TRANSMISSION SHIFT LEVER, 4WD (21) - TRANSMISSION

1

179689A2

LEVER

Transmission Control

1шт.

2

190618A1

BELLOWS

Boot

1шт.

3

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

6

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

7

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

4шт.

8

86982509

SPACER

Spacer Shift Handle

1шт.

Used on Handle 86982255, Not Needed for Sub to Handle

1шт.

9

86982255

HANDLE

Gear Control Handle

1шт.
