(21.114.AB[01]) - TRANSMISSION OIL DIPSTICK, 4WD

Запчасти Case 570N EP (21.114.AB[01]) - TRANSMISSION OIL DIPSTICK, 4WD (21) - TRANSMISSION

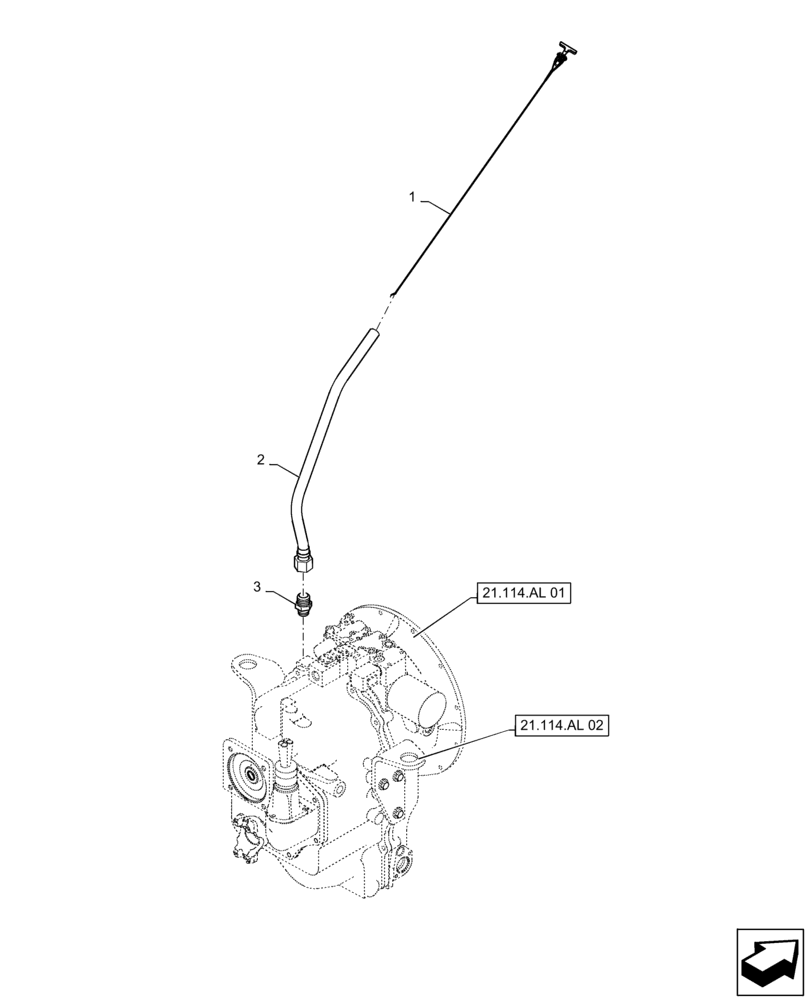

Схема запчастей Case 570N EP - (21.114.AB[01]) - TRANSMISSION OIL DIPSTICK, 4WD (21) - TRANSMISSION
3
21.114.al 02
1
21.114.al 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87601345

DIPSTICK,824mm L

Transmission

1шт.

2

84329366

TUBE

Dipstick, Standard

1шт.

3

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.
