(21.100.AG[01]) - TRANSMISSION OIL FILTER, 2WD & 4WD

Запчасти Case 570N EP (21.100.AG[01]) - TRANSMISSION OIL FILTER, 2WD & 4WD (21) - TRANSMISSION

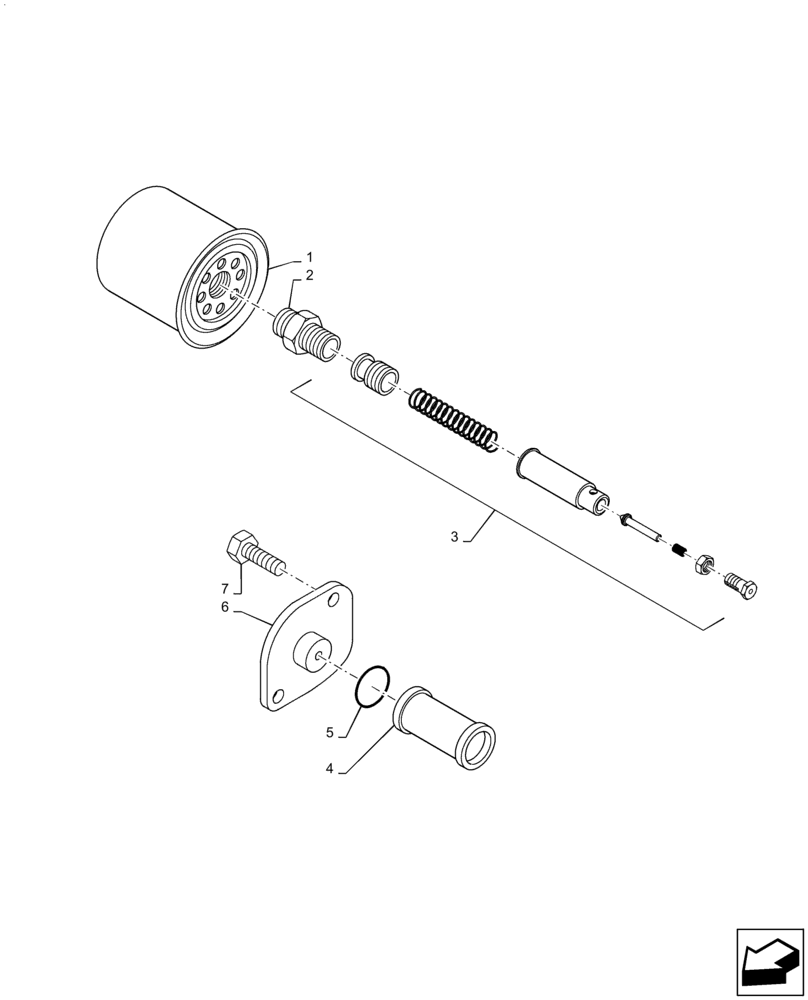

Схема запчастей Case 570N EP - (21.100.AG[01]) - TRANSMISSION OIL FILTER, 2WD & 4WD (21) - TRANSMISSION
6
3
4
5
2
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Transmission Oil

1шт.

2

181202A1

FITTING

Oil Filter Connection

1шт.

3

84127891

KIT

Valve

1шт.

4

278534A1

FILTER SCREEN

Suction

1шт.

5

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

6

84301332

COVER

Filter Screen

1шт.

7

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.
