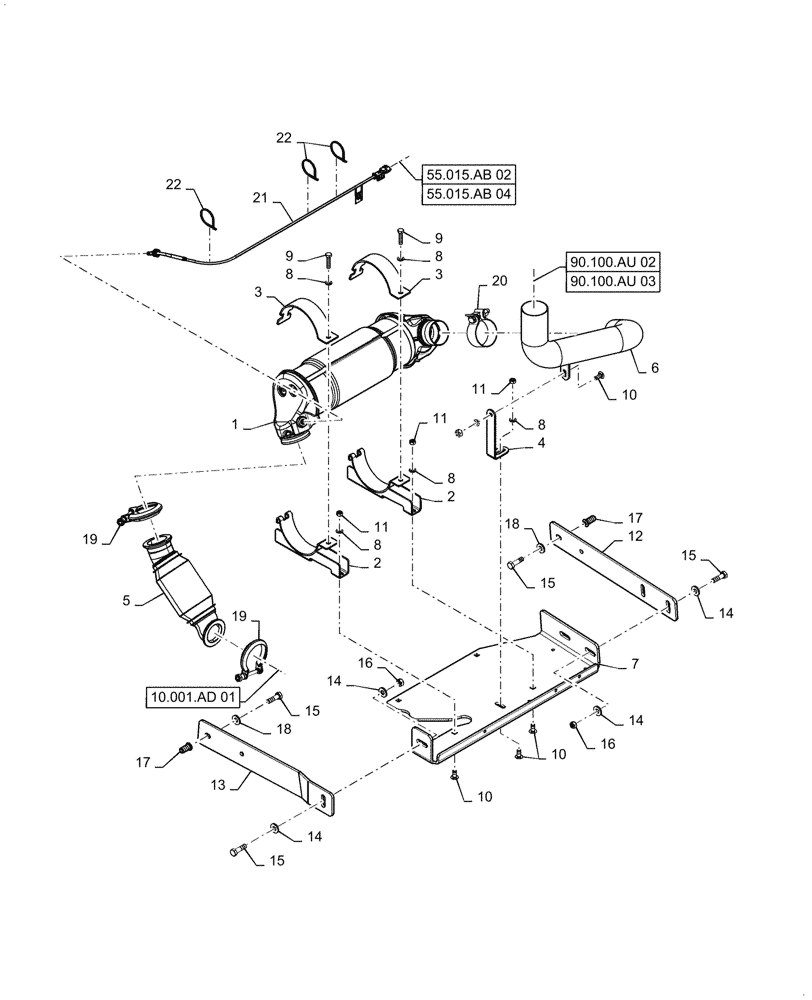

Запчасти Case 570N EP (10.500.AO[02]) - MUFFLER, MOUNTING - W/ DOC ONLY (10) - ENGINE

1

47867194

CATALYST

DOC, Start Serial: NHC739062

1шт.

2

47520912

SUPPORT

Clamp, Base

2шт.

3

47520915

COLLAR CLAMP

2шт.

4

47520919

BRACKET

Support, Outlet

1шт.

5

47849405

EXHAUST SYSTEM PIPE

Exhaust, Flex Coupler

1шт.

6

47633230

PIPE

Outlet

1шт.

7

47611118

SUPPORT

Platform

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

10

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

6шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

12

84413384

BRACKET

DPF, LH

1шт.

13

84413387

BRACKET

DPF, RH

1шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

7шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

17

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

4шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

84409146

PIPE CLAMP,63.5mm - 70mm

Hose, Exhaust

2шт.

20

47546634

PIPE CLAMP,65.3mm ID

Exhaust Band

1шт.

21

47478880

TEMPERATURE SENDER,50mm, Closed

EGT

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
