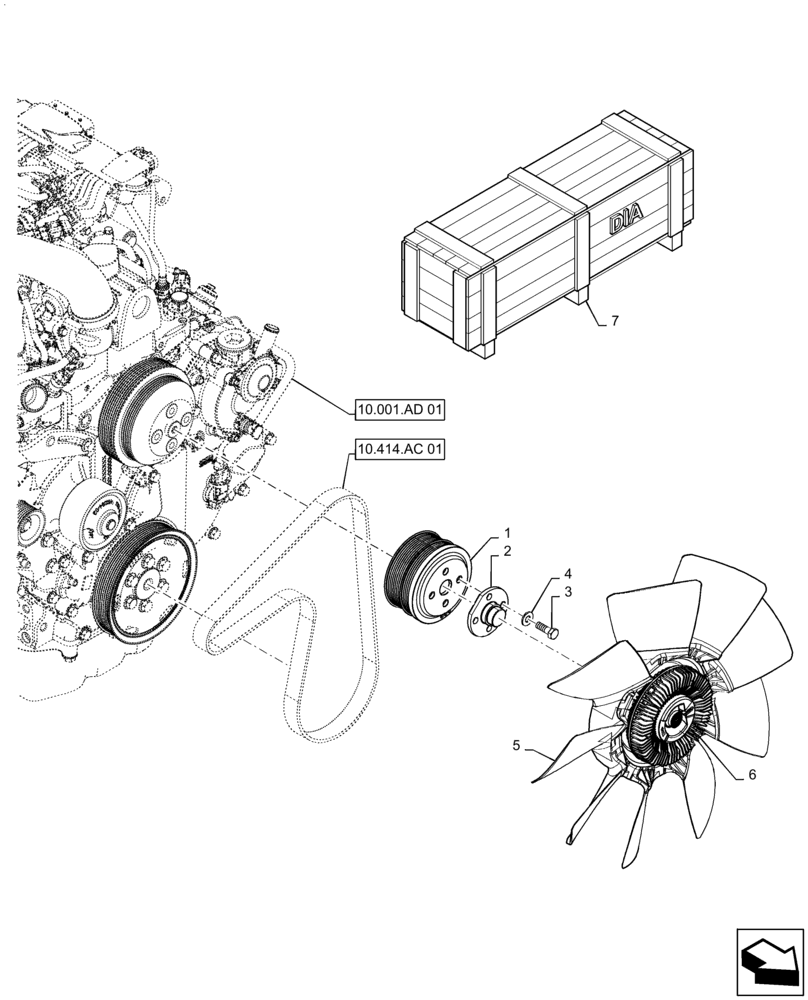

Запчасти Case 570N EP (10.414.AC[02]) - ENGINE FAN & BELT DRIVE (10) - ENGINE

1

84390630

PULLEY

Fan

1шт.

1

5801420820

PULLEY

Fan

1шт.

2

303192A1

ADAPTER

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

5

277800A1

FAN,9 Blades, 500.1mm OD

1шт.

6

87340008

DRIVE

Viscous Fan

1шт.

7

47788903

CONSTRUCTION DIA

DIA Kit, High Ambient (Order from Wholegoods Only) Incl 1 - 6

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
