Запчасти Case 570N EP (10.400.BF[01]) - RADIATOR & COOLER MOUNTING, 4WD (10) - ENGINE

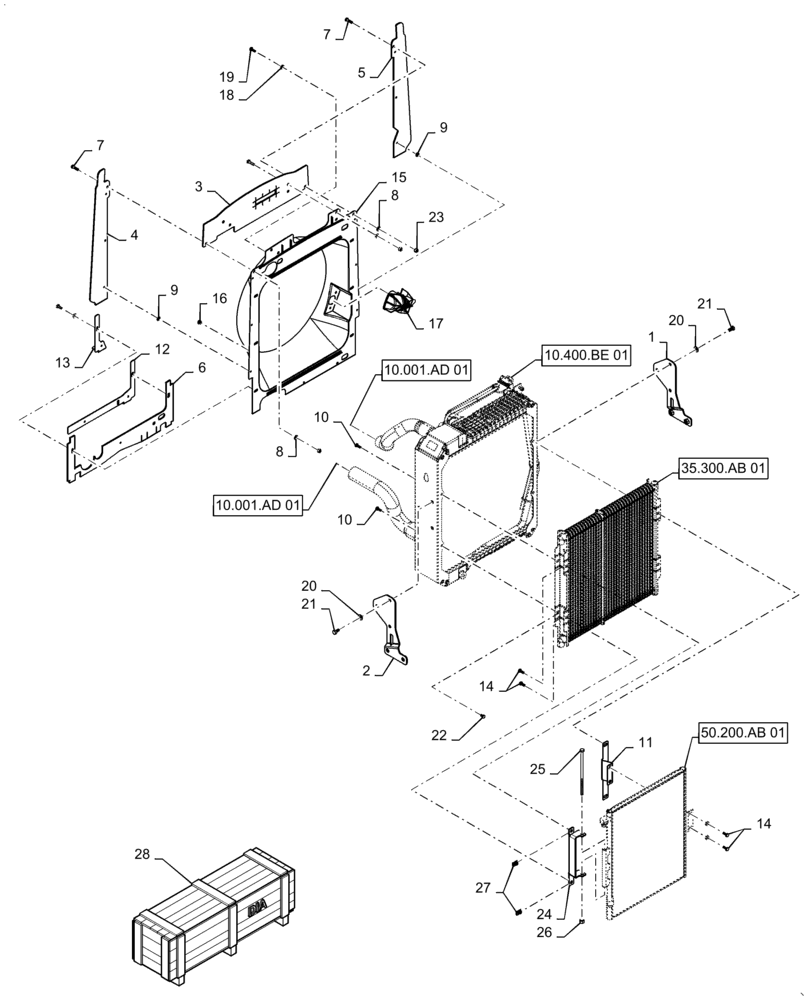

Схема запчастей Case 570N EP - (10.400.BF[01]) - RADIATOR & COOLER MOUNTING, 4WD (10) - ENGINE
21
17
13
7
24
10.001.ad 01
26
7
16
23
14
9
21
14
35.300.ab 01
22
10.001.ad 01
12
2
28
10.400.be 01
19
18
6
20
25
15
27
20
8
4
50.200.ab 01
5
1
10
10
3
11
9
8

Артикул

Название

Примечание

Количество

1

47369244

BRACKET

LH Radiator

1шт.

2

47369241

BRACKET

RH Radiator

1шт.

3

47369249

SEAL,615.7mm L

Top Radiator

1шт.

4

84403324

RUBBER SEAL,664mm L

Radiator Side

1шт.

5

47565514

SEAL,664mm L

Radiator Side

1шт.

6

84540367

SEAL,614mm L

Lower Radiator

1шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

28шт.

9

87301355

RIVET,Pop, 3/16" x .575"

6шт.

10

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

11

47369248

BRACKET

LH Condenser Support

1шт.

12

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

LH Lower Shroud

1шт.

13

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

RH Lower Shroud

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

15

47615718

SHROUD

Fan

1шт.

16

87301356

RIVET,Pop, 3/16" x .700"

1шт.

17

84185540

DUST CAP

Ejector

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

20

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

22

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

24

47369246

BRACKET

Condenser Pivot

1шт.

25

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

26

412141

NUT,M10 x 1.5, Cl 8

1шт.

27

833-40408

NUT,M8, U

6шт.

28

47714516

CONSTRUCTION DIA

DIA Kit, Supplemental High Ambient, Incl 11, 24

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.

Выбрано товаров: 29
