Запчасти Case 570N EP (10.216.BA[03]) - FUEL LINES, HIGH AMBIENT (10) - ENGINE

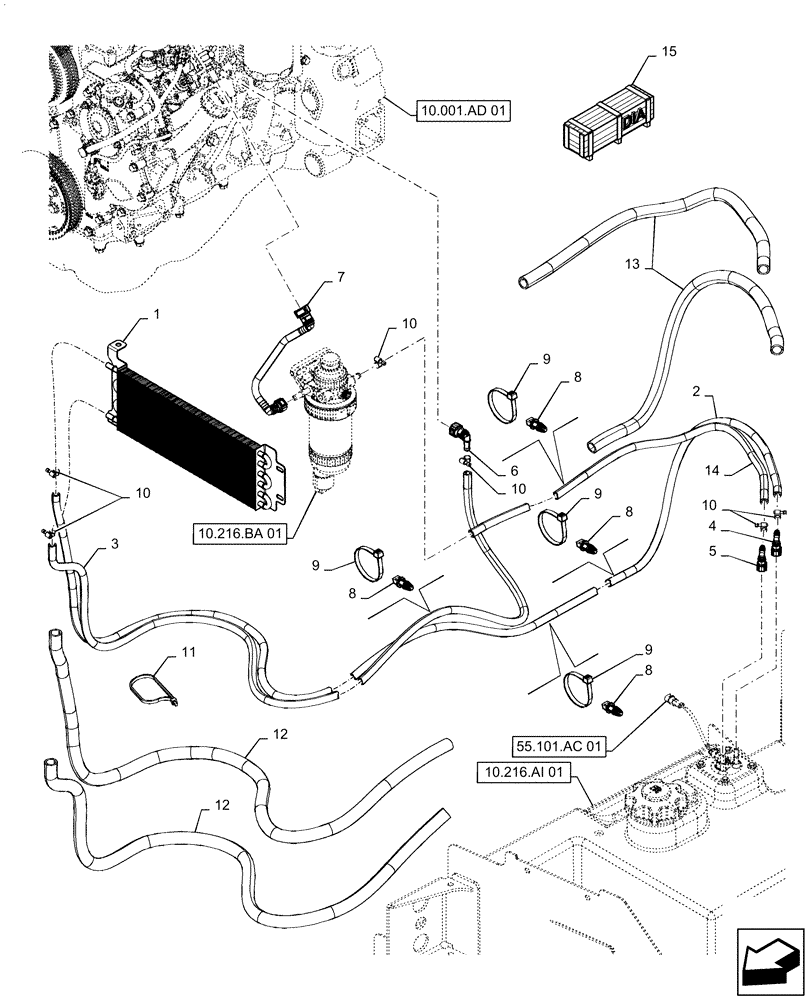

Схема запчастей Case 570N EP - (10.216.BA[03]) - FUEL LINES, HIGH AMBIENT (10) - ENGINE
9
10
10
7
12
8
10.216.ba 01
2
9
1
55.101.ac 01
6
10.001.ad 01
11
10
5
14
8
3
8
10.216.ai 01
10
15
13
4
9
8
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47689746

FUEL COOLER

1шт.

2

47589005

FUEL HOSE,9.5mm ID x 2770mm L

Return, Cooler to Tank

1шт.

3

47589006

FUEL HOSE,9.5mm ID x 1700mm L

Suction, Engine to Cooler

1шт.

4

47551317

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

5

84532958

FITTING,9.49mm ID, 3/8" OD, 90 Degree

1шт.

6

84425860

FITTING,90 Degree, for Fuel Hose 9.5mm ID

1шт.

7

84391629

RIGID TUBE

1шт.

8

47655460

FASTENER

4шт.

9

833-40408

NUT,M8, U

6шт.

10

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

6шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

12

47611880

HOSE PROTECTION,19mm ID x 1105mm L

2шт.

13

84249061

HOSE PROTECTION,19mm ID x 820mm L

2шт.

14

47589004

FUEL HOSE,9.5mm ID x 1170mm L

Tank to Filter

1шт.

15

47788903

CONSTRUCTION DIA

DIA Kit, High Ambient (Order from Wholegoods Only) Incl 1 - 3, 8 - 13

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
