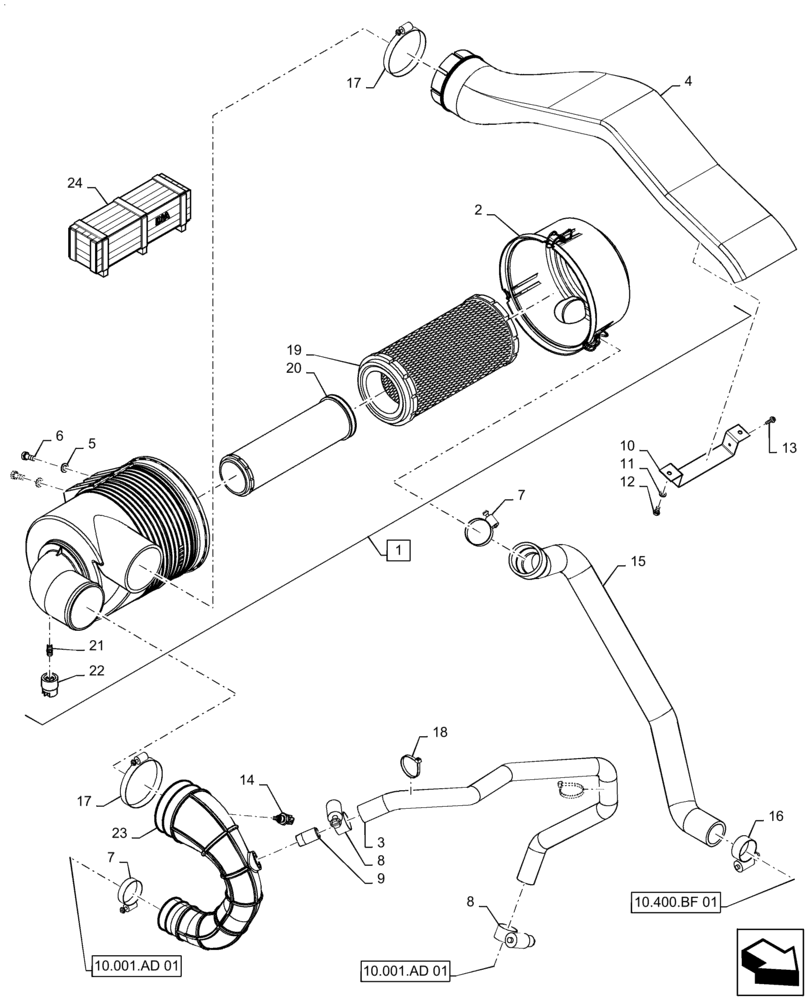

Запчасти Case 570N EP (10.202.AB[01]) - AIR CLEANER ASSEMBLY (10) - ENGINE

1

84375347

AIR CLEANER

Air Cleaner Assembly, Incl 2, 5 - 6, 19 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

Air Cleaner Housing, Incl in 1

1шт.

3

47691878

INTAKE AIR HOSE

Intake Air, Case, CCV

1шт.

3

47733741

HOSE

Added with Heated CCV DIA Kit, Incl 9

1шт.

4

84280287

AIR DUCT

Duct, Air, Intake

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

7

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

8

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

9

47691875

NIPPLE,1/2" - 14 NPT, 21.3mm OD, 38mm L

1шт.

9

47727093

QUICK MALE COUPLING,17.8mm ID

Added with Heated CCV DIA Kit

1шт.

10

84558073

BRACKET

Air Cleaner Intake

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

13

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

14

84539252

SENSOR

Sensor, Air Temperature

1шт.

15

47510636

HOSE

Aspiration

1шт.

16

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

1шт.

17

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

19

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary

1шт.

20

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary

1шт.

21

86976679

ADAPTER

1шт.

22

292740A1

RESTRICTION SWITCH

Vacuum

1шт.

23

47700469

INTAKE AIR HOSE

Air Cleaner, F5C

1шт.

24

47850063

CONSTRUCTION DIA

DIA Kit, Heated CCV, Incl 3, 9

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
