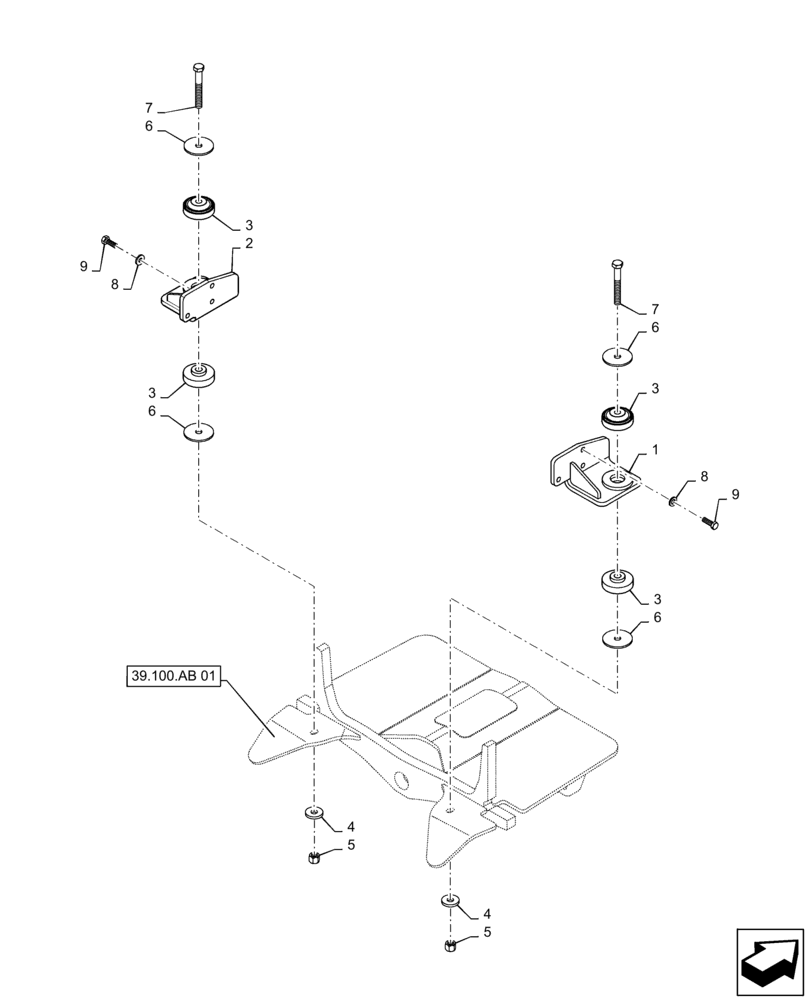

Запчасти Case 570N EP (10.001.AK[01]) - ENGINE MOUNTING (10) - ENGINE

1

84563990

BRACKET

RH Engine Mount

1шт.

2

84563992

BRACKET

LH Engine Mount

1шт.

3

84385963

MOUNT

Engine

4шт.

4

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

5

832-10416

NUT,M16 x 2, Cl 8

2шт.

6

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

4шт.

7

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.
