Запчасти Case 570N EP (05.100.03) - FILTERS (05) - SERVICE & MAINTENANCE

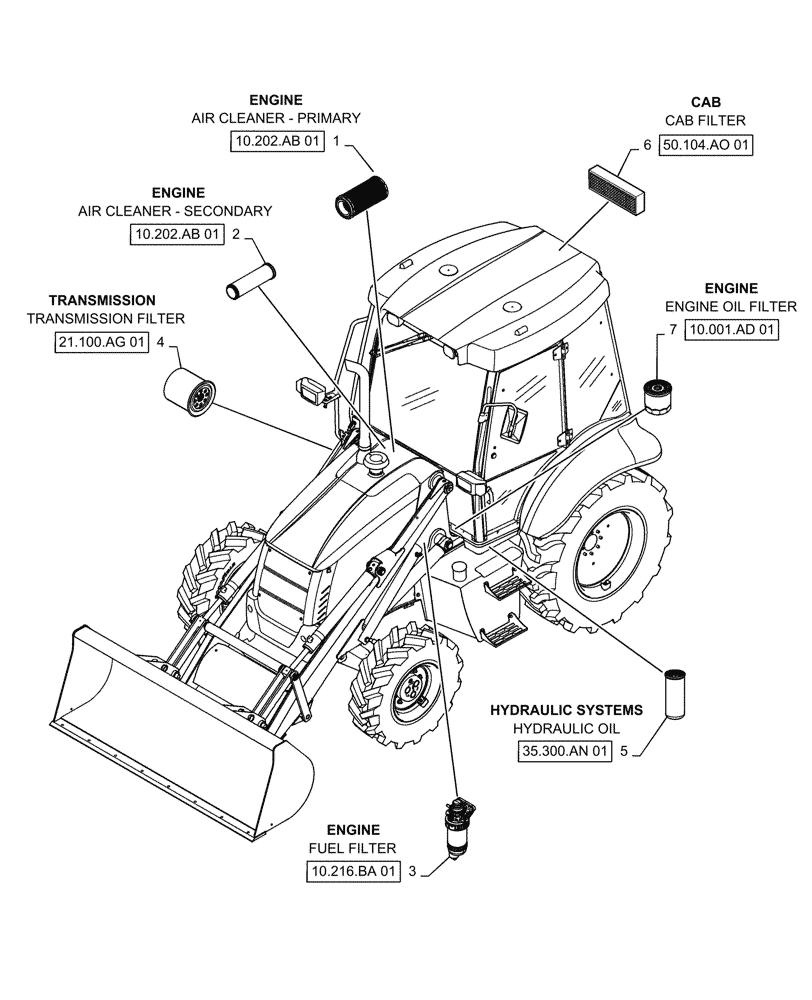

Схема запчастей Case 570N EP - (05.100.03) - FILTERS (05) - SERVICE & MAINTENANCE
50.104.ao 01
5
2
4
6
3
1
7
21.100.ag 01
35.300.an 01
10.001.ad 01
10.202.ab 01
10.202.ab 01
10.216.ba 01

Артикул

Название

Примечание

Количество

1

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Primary (Replace Every 1000 hrs)

1шт.

2

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Secondary (Replace Every 1000 hrs)

1шт.

3

47541051

FUEL FILTER,W/ WIF Sensor

Assembly, Fuel Water Separator

1шт.

3

84565926

FUEL FILTER,20.6mm ID x 85mm OD x 154.3mm L, W/ Water Drain

W/Fuel Water Separator (Replace, Initial 100 hrs, then Every 500 hrs)

1шт.

4

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

2WD & 4WD Transmission Oil, (Replace, Initial 100 hrs, then Every 1000 hrs)

1шт.

5

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

Hydraulic Oil Filter (Replace, Initial 100 hrs, then Every 1000 hrs)

1шт.

6

139768A1

FILTER, ELEMENT

Cab (Check Every 1000 hrs)

2шт.

7

48138563

(Replace Every 500 hrs)

ENGINE OIL FILTER

1шт.

Выбрано товаров: 8
