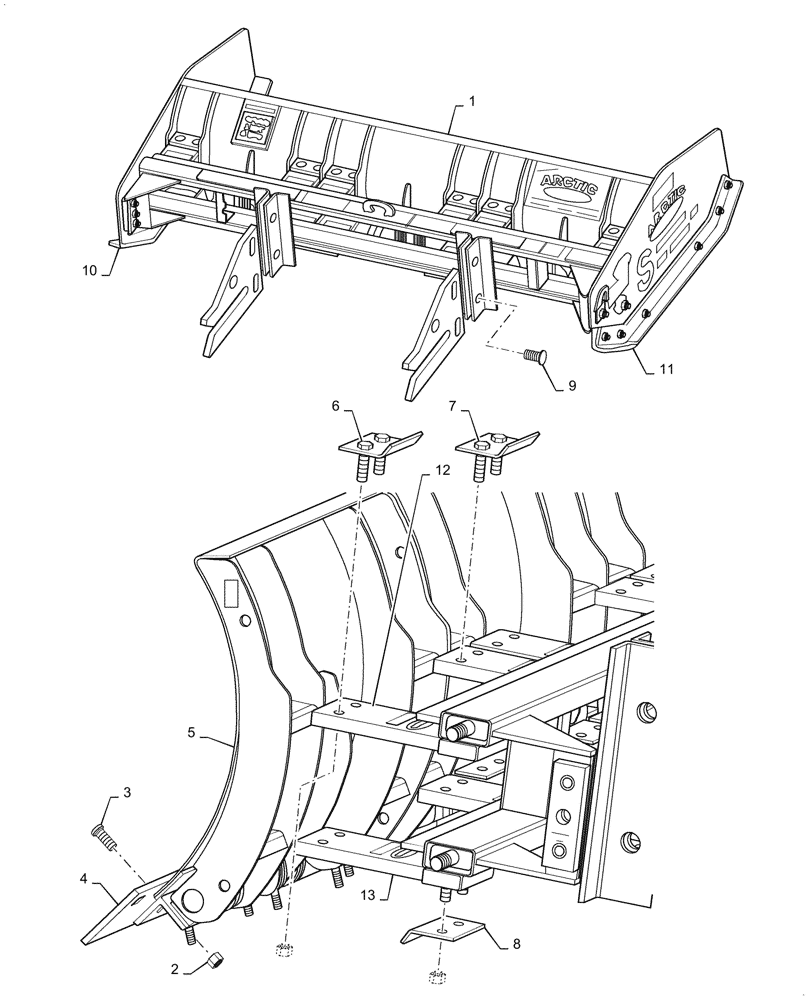

Запчасти Case 570N EP (95.100.090[04]) - SNOW BLADE, 156" (95) - CE ATTACHMENTS

1

48032852

ATTACHMENT,FFC MT; 13 FT

156" Snow Push, QC

1шт.

2

NSS

NOT SOLD SEPARAT

Nut, Included in Upper Assembly

1шт.

3

NSS

NOT SOLD SEPARAT

Bolt, Included in Upper Assembly

1шт.

4

48031668

CUTTING EDGE

30"

1шт.

5

NSS

NOT SOLD SEPARAT

Plow, Included in Upper Assembly

1шт.

6

NSS

NOT SOLD SEPARAT

Bracket, Included in Upper Assembly

1шт.

7

NSS

NOT SOLD SEPARAT

Center Bracket, Included in Upper Assembly

1шт.

8

NSS

NOT SOLD SEPARAT

Lower Bracket, Included in Upper Assembly

1шт.

9

48031673

PIN

Mounting

1шт.

10

48031682

SHOE

LH

1шт.

11

48031680

SHOE

RH

1шт.

12

48031663

BLOCK

Poly, Top

1шт.

13

48031664

BLOCK

Poly, Bottom

1шт.
