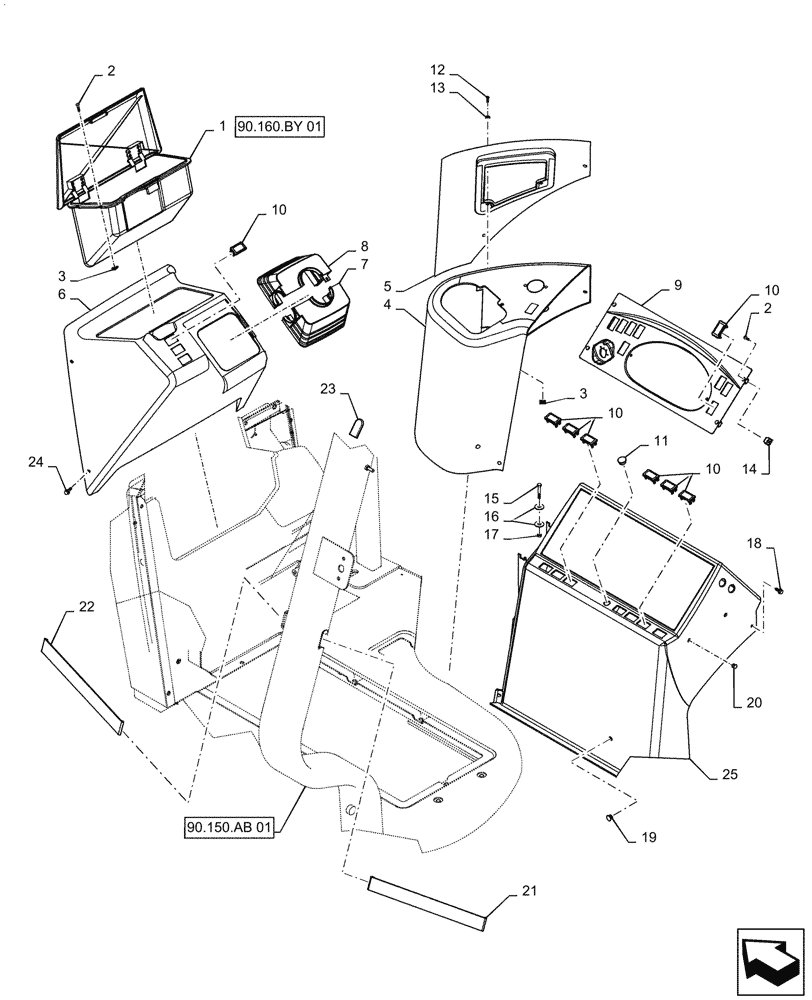

Запчасти Case 570N EP (90.160.BY[01]) - CAB CONSOLE COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47939871

TOOL BOX

Storage

1шт.

See Fig 90.160.AM (01) For Service Parts

1шт.

2

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

11шт.

3

131-861

SPRING NUT,Tinn, U, #10-24

7шт.

4

47939801

COVER

Loader Linkage Gray

1шт.

5

47939802

PANEL

Panel Fuse Access

1шт.

6

47939798

CONSOLE

Front

1шт.

7

119268A1

COVER

Steering Column Lower

1шт.

8

119267A2

COVER

Steering Column Upper

1шт.

9

410932A1

BEZEL

Instrument Cluster

1шт.

9

87539792

COVER

1шт.

10

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

7шт.

11

353-429

PLUG

Flat Face .687 Inch Hole

1шт.

12

87310086

CAPTIVE WASHER SCREW,Sl Pan Hd, #10 - 16 x 17mm, Stainless Steel

2шт.

13

127009A1

CLIP,ELECTRICAL

Push On

2шт.

14

86625077

SPRING NUT,J, Ret, #10-24

4шт.

15

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

1шт.

16

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

17

832-10406

NUT,M6 x 1, Cl 8

1шт.

18

87310152

BOLT,M6 x 16 Full SST BLO

6шт.

19

353-425

PLUG,0.437 Hole OD

Flat Face .437 Inch hole

2шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

Black

2шт.

21

296367A1

STRAP

Velcro

1шт.

22

282845A1

STRAP

Velcro

1шт.

23

294666A1

COVER

Coat Hook

1шт.

24

87310098

BOLT,M6 x 20 Full SST BLO

4шт.

25

47939796

CONSOLE

W/O Radio

1шт.

25

47939795

CONSOLE

W/Radio

1шт.
