(90.151.AD[02]) - VAR - 747735, 747850, 747851 - SEAT BELT, MECHANICAL SEAT

Запчасти Case 570N EP (90.151.AD[02]) - VAR - 747735, 747850, 747851 - SEAT BELT, MECHANICAL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

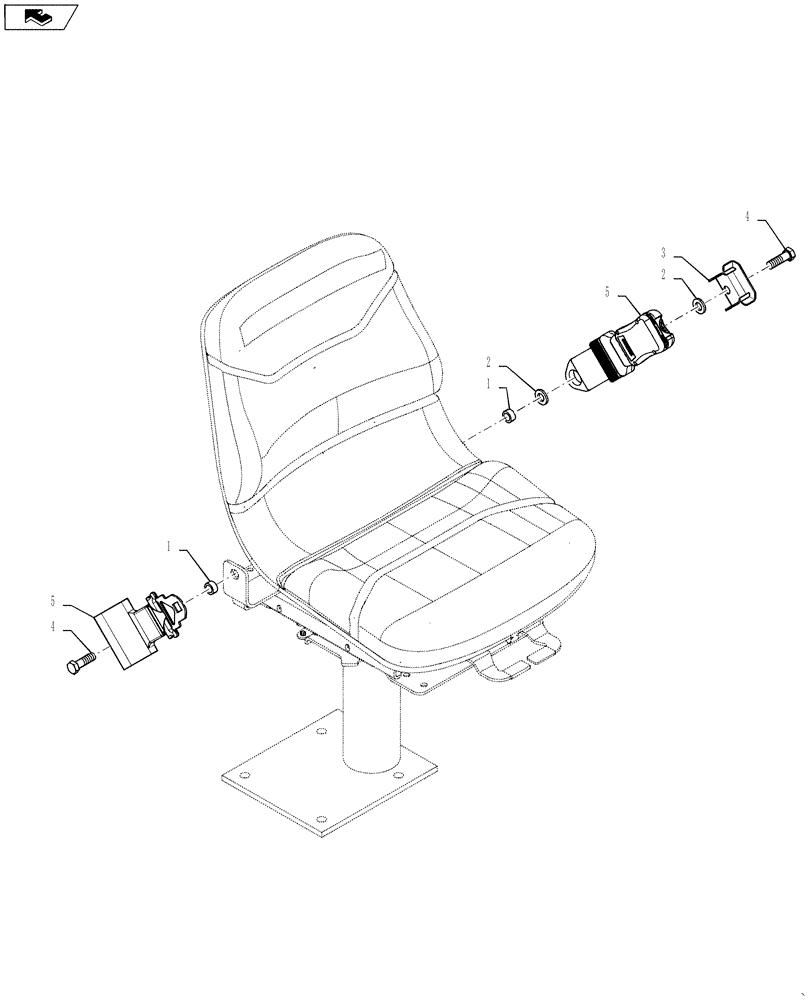

Схема запчастей Case 570N EP - (90.151.AD[02]) - VAR - 747735, 747850, 747851 - SEAT BELT, MECHANICAL SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
home
1
3
4
5
5
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87311572

SPACER,12.7mm x 19mm x 9mm

Seat Belt Mounting

2шт.

2

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

13.65 X 24

2шт.

3

87310149

BRACKET

Seat Belt Mounting

1шт.

4

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

5

47600159

SEAT BELT,2 inch Wide Belt

Assembly 2 Inch

1шт.

5

47600153

SEAT BELT,3 inch Wide Belt

Assembly 3 Inch

1шт.

Выбрано товаров: 6
