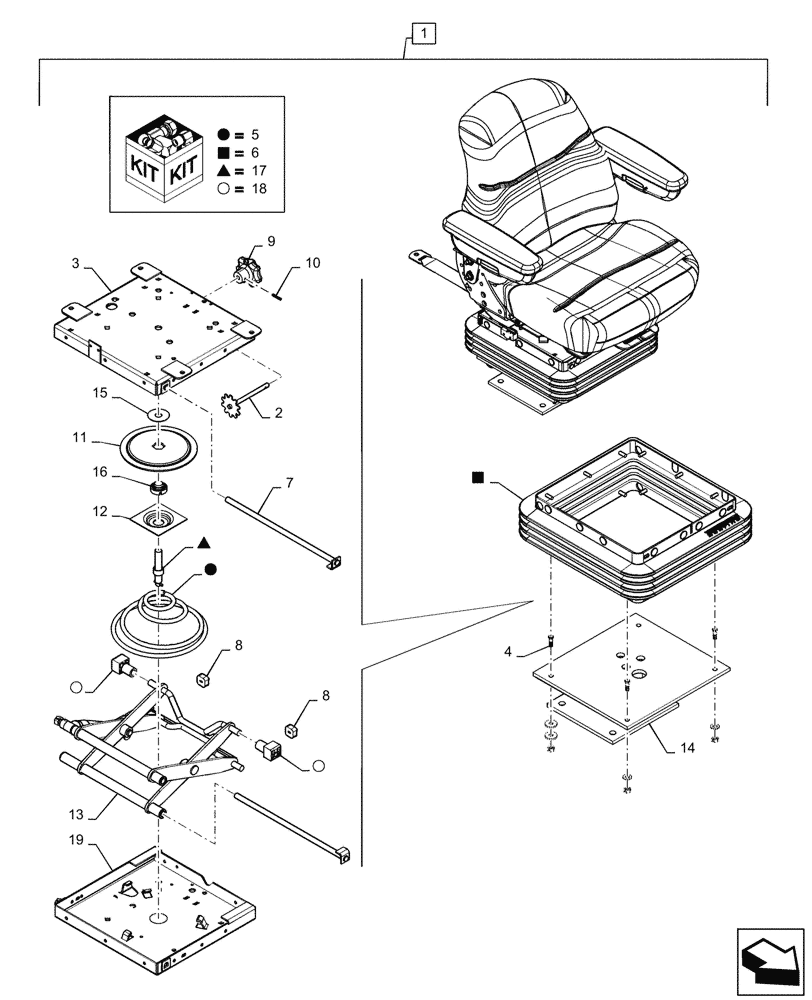

Запчасти Case 570N EP (90.120.BB[04]) - VAR 747770, 747851 - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47939083

DRIVER SEAT

Assembly, Vinyl Gray, W/Armrest, Incl 2 - 20

1шт.

2

84586969

GEAR

Gear and Shaft

1шт.

3

84586961

HOUSING

1шт.

4

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

5

87308146

SEAT ACCESSORY

Suspension Spring

1шт.

6

87308144

SEAT SUPPORT

Suspension

1шт.

6

87308147

SEAT ACCESSORY

Suspension Boot

1шт.

7

112884A1

SHAFT,368mm L

2шт.

8

A45054

BUMPER,Neoprene

2шт.

9

123969A1

SEAT ACCESSORY

Knob Assembly, Spinner and Shaft

1шт.

10

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

11

84586970

GEAR,188mm OD

1шт.

12

84586971

GEAR SHAFT

1шт.

13

87308144

SEAT SUPPORT

1шт.

14

87580151

SEAT ACCESSORY

Pedestal Assembly

1шт.

15

84586966

WASHER,27.5mm ID x 70mm OD x 05mm Thk

4шт.

16

84586972

HUB

1шт.

17

87308148

SEAT ACCESSORY

Kit, Shock Absorber

1шт.

18

1977725C1

SLIDER

1шт.

19

87308142

SEAT SUPPORT

Lower Housing

1шт.
