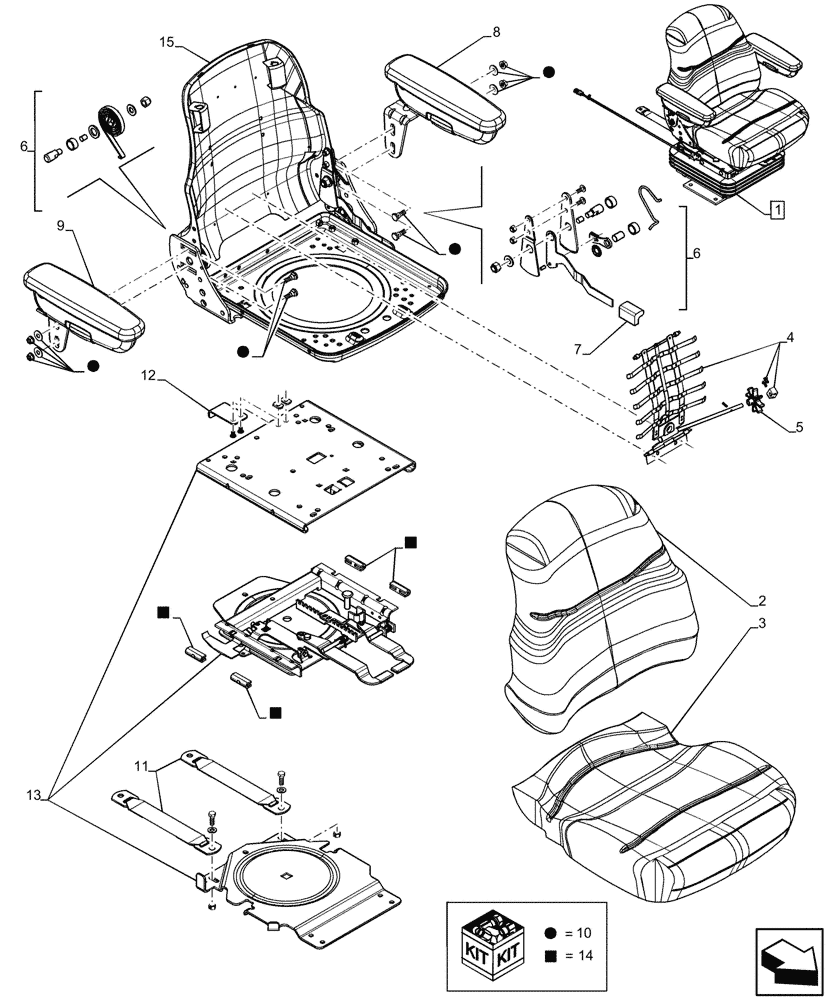

Запчасти Case 570N EP (90.120.BB[03]) - VAR 747770, 747851 - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47939083

DRIVER SEAT

Assembly, Gray Vinyl, W/Armrest, Incl 2 - 15

1шт.

1

47939079

DRIVER SEAT

Assembly, Gray Cloth, W/Armrest, Incl 2 - 15

1шт.

2

47944830

SEAT BACK

Gray Vinyl

1шт.

2

47946000

SEAT BACK

Gray Cloth

1шт.

3

47944829

SEAT CUSHION,Vinyl, Grey

Gray Vinyl

1шт.

3

47945895

SEAT CUSHION,Fabric, Grey

Gray Cloth

1шт.

4

87308130

SEAT BACK ADJUST DEV

Lumbar Kit

1шт.

5

87037462

SEAT BACK ADJUST DEV

Lumbar Knob Kit

1шт.

6

86994165

SEAT ACCESSORY

Recliner Kit

1шт.

7

87416475

KNOB

Recliner

1шт.

8

87308153

ARMREST

LH

1шт.

9

87308152

ARMREST

RH

1шт.

10

87308154

SEAT ACCESSORY

Arm pad Kit

2шт.

11

87308128

SEAT ACCESSORY

Tether Belt Kit

1шт.

12

84174986

BRACKET

Bracket, Incl in 11

1шт.

13

87309820

SEAT ACCESSORY

Swivel Assembly

1шт.

13

87308132

BEARING ASSY

Swivel Bearing Kit

1шт.

14

300680A1

KIT

Slide Puck

1шт.

15

47944828

SEAT BACK

Assembly, Top, Gray Vinyl

1шт.

15

47945892

SEAT BACK

Assembly, Top, Gray Cloth

1шт.
