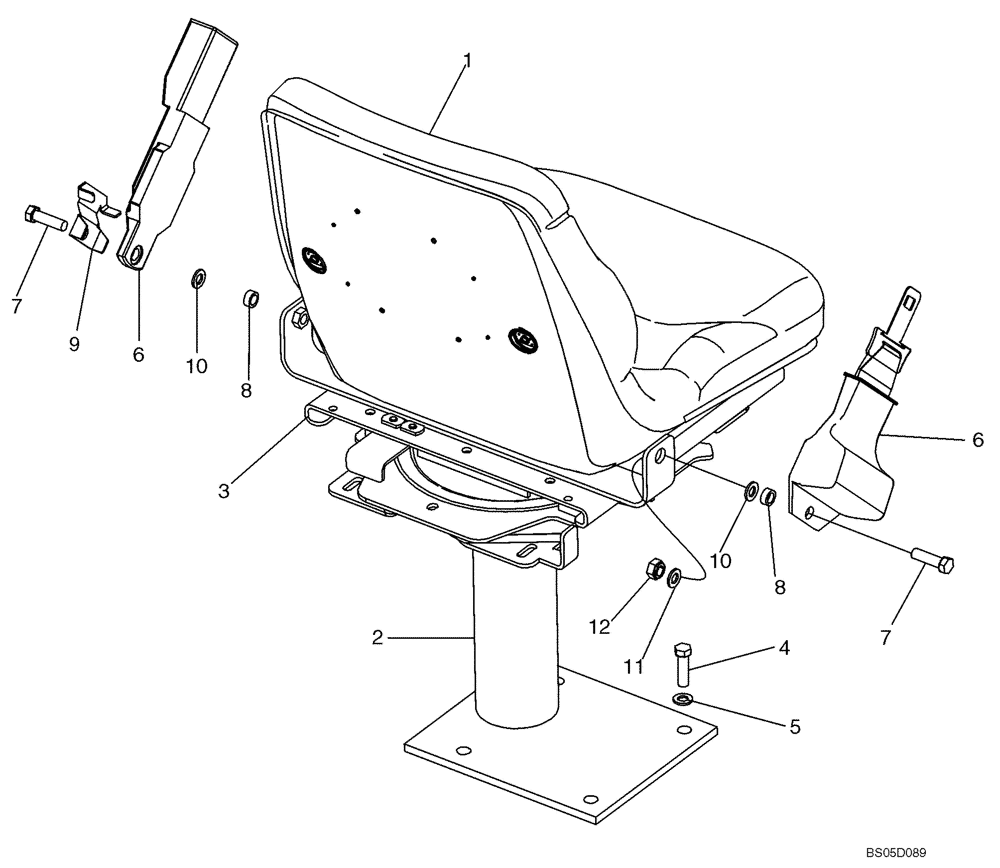

Запчасти Case 570N EP (90.120.BB[01]) - VAR - 747850 - SEAT, NON-SUSPENSION, W/O, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47939084

DRIVER SEAT

Assembly, Non Suspension, Vinyl - Gray, W/O Armrest, Canopy Version, Sears Brand (Includes Seat, Swivel and Pedestal, and Swivel Bearing), Incl 2 - 3

1шт.

1

47984851

DRIVER SEAT

Assembly, Non Suspension, Vinyl - Gray, W/O Armrest, Cab Version, Sears Brand (Includes Seat, Swivel and Pedestal, and Swivel Bearing), Incl 2 - 3

1шт.

1

47950289

SEAT BACK

Top Assembly, Canopy Version

1шт.

1

48002722

SEAT BACK

Top Assembly, Cab Version

1шт.

2

87577800

SEAT ACCESSORY

Swivel and Pedestal; Component Parts Not Serviced Separately

1шт.

3

87308132

BEARING ASSY

Swivel Bearing; Includes (1) Bolt, (8) Bearings, (1) Clip, (1) Nut, (1) Cotter Pin, (1) Plastic Washer, (1) Ball Retainer; Component Parts Not Serviced Separately

1шт.

4

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

6

47600153

SEAT BELT,3 inch Wide Belt

1шт.

6

47600159

SEAT BELT,2 inch Wide Belt

1шт.

7

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

8

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

9

87310149

BRACKET

Left-Hand

1шт.

10

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

11

496-81010

WASHER

15/32 x 1 x 7/64

4шт.

12

280474

NUT,7/16"-20, GC

2шт.
