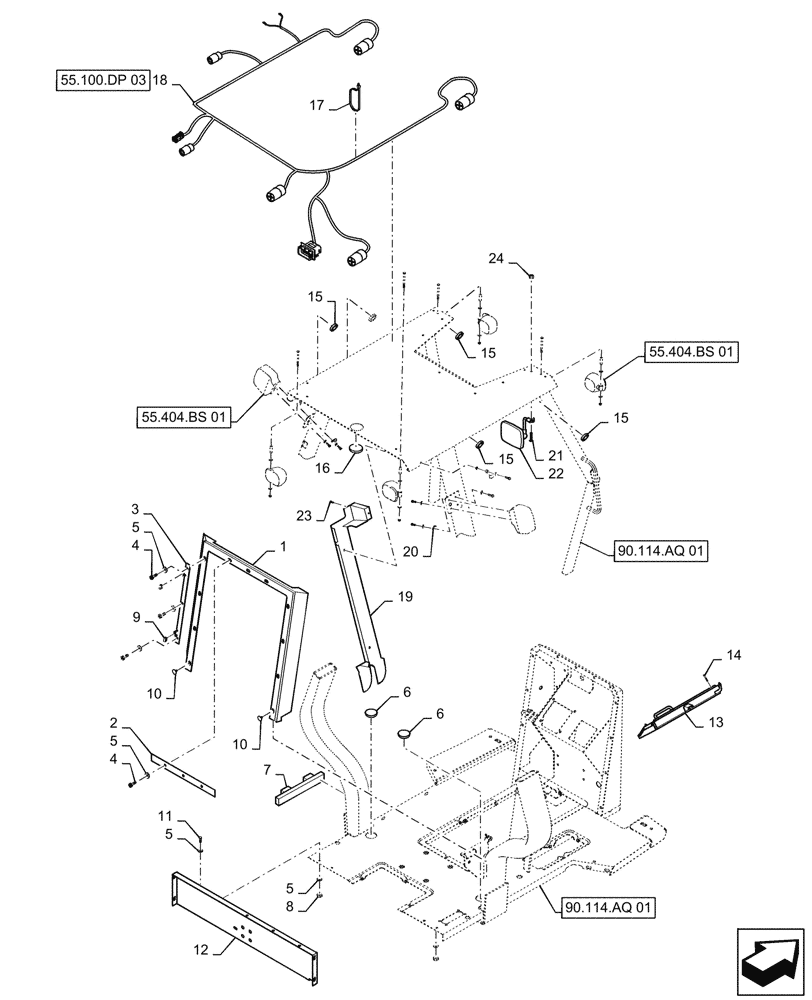

Запчасти Case 570N EP (90.114.AQ[02]) - LOW PROFILE CANOPY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47939825

MOLDING

Firewall

1шт.

2

143127A1

PLATE

Stiffener Firewall

1шт.

3

137851A1

PLATE

Bar Console Mounting

2шт.

4

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

9шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

12шт.

6

353-417

PLUG,Dome, 2.000" hole, Nylon

2шт.

7

188482A1

SEALING STRIP

Foam

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

9

833-40406

NUT,M6, U

4шт.

10

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Push In

2шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

12

400464A2

PANEL

Lower Rear Closure

1шт.

13

393009A1

FRAME

Cover Side Lockup

1шт.

14

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

4шт.

15

194262A1

GROMMET,25.4mm ID x 57.15mm OD x 12.7mm Thk

4шт.

16

D93716

PLUG,73.mm ID x 88.9mm OD

3шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

18

84386678

WIRE HARNESS

ROPS

1шт.

19

47939824

COVER

Electrical

1шт.

20

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

21

13313617

SCREW,Pozidriv Oval Hd, Csk, M6 x 30mm, Cl 5.8, Full Thd

1шт.

22

87665407

REAR VIEW MIRROR

1шт.

23

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

24

832-10406

NUT,M6 x 1, Cl 8

1шт.
