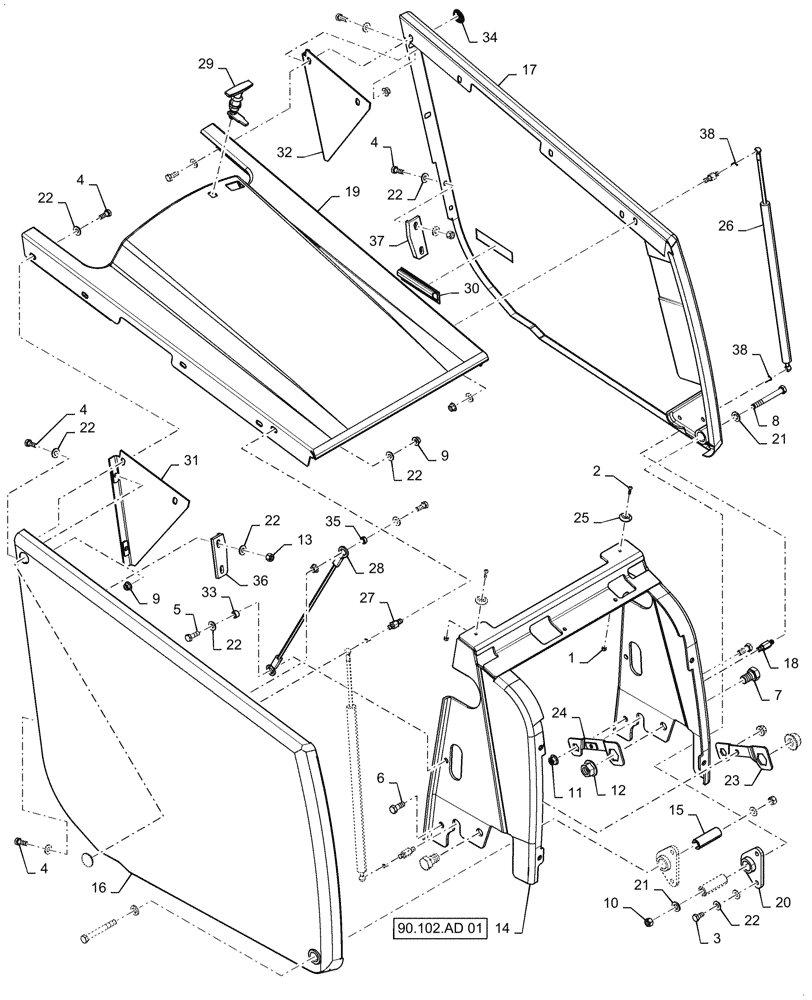

Запчасти Case 570N EP (90.100.AU[02]) - HOOD PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

231-14109

LOCK NUT,#10-24, GB

2шт.

2

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

16шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

7

614-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

9

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

10шт.

10

829-1412

NUT,M12, Cl 10.9

2шт.

11

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

12

829-2420

FLANGE NUT,M20 x 2.5, Flg, Cl 10

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

14

84393366

WRAPPER

1шт.

15

87412060

TUBE,13.5 mm ID x 25.36 mm OD x 76 mm L

2шт.

16

87444147

PANEL, SIDE

RH Case Power Tan

1шт.

17

87444148

PANEL, SIDE

LH Case Power Tan

1шт.

18

87561131

BALL JOINT,M10 x 1.5mm x 48mm L

2шт.

19

87594903

ENGINE HOOD

Tilt

1шт.

20

87606502

PIVOT

2шт.

21

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

31шт.

23

87725883

RETAINER

1шт.

24

87725886

RETAINER

1шт.

25

109879A1

SPACER,5.5mm ID x 30mm OD

2шт.

26

114980A1

GAS STRUT

Spring

2шт.

27

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

2шт.

28

144908A2

CABLE,638mm L

1шт.

29

175599A1

LATCH

T Handle

1шт.

30

183168A1

HANDLE

Side Panel Lift

1шт.

31

362607A1

SUPPORT

RH Brace Side Panel

1шт.

32

362609A1

SUPPORT

LH Brace Side Panel

1шт.

33

396605A1

SPACER,10.31mm ID x 15.88mm OD x 10mm L

1шт.

34

D140267

PLUG,30.16mm OD

Hole

2шт.

35

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

36

D143714

SUPPORT

RH Side Panel

1шт.

37

D143715

SUPPORT

LH Side Panel

1шт.

38

F44883

CLIP,DIN 71805 - S10

Gas Spring

4шт.
