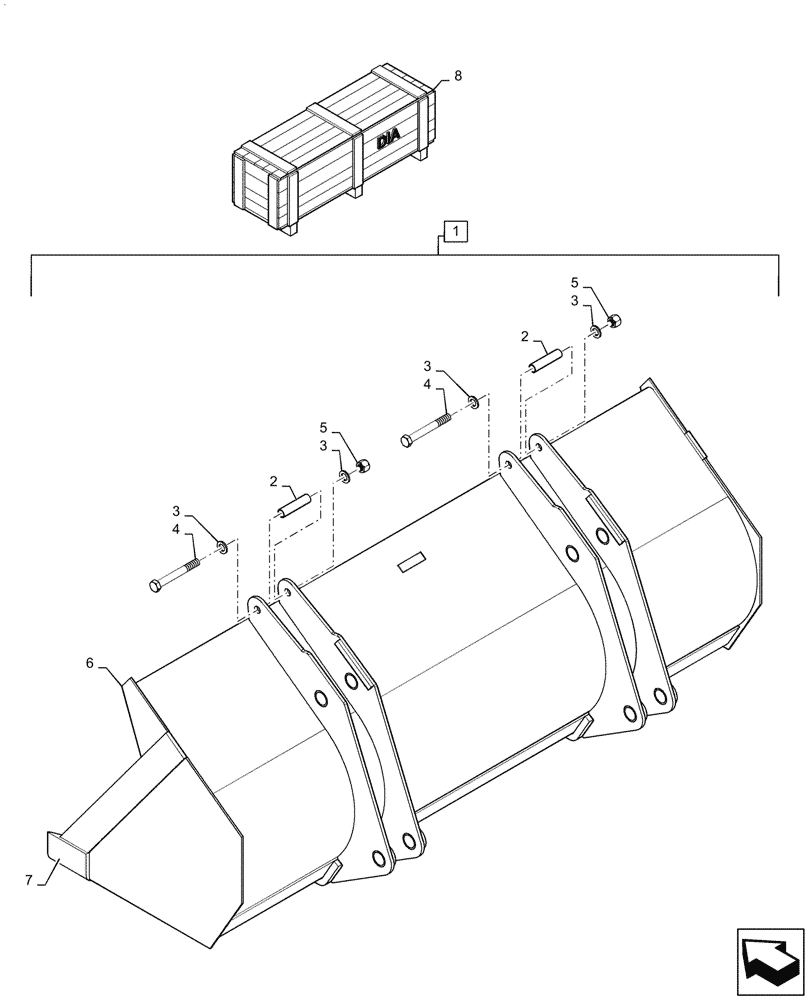

Запчасти Case 570N EP (82.300.AN[02]) - VAR - 747657 - LOADER BUCKET, 82" LONG LIP (82) - FRONT LOADER & BUCKET

1

84422709

BUCKET,82 Inch LL

82" Long Lip, Incl 2 - 7

1шт.

2

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

Chain Hook

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

5

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

6

NSS

NOT SOLD SEPARAT

82" Bucket, Incl in 1

1шт.

7

132988A1

CUTTING EDGE

Weld-On Cutting

1шт.

8

84466054

BUCKET

DIA Kit, 82" Gray Bucket with Weld on Cutting Edge (Order From Wholegoods Only) Incl 1 - 7

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
