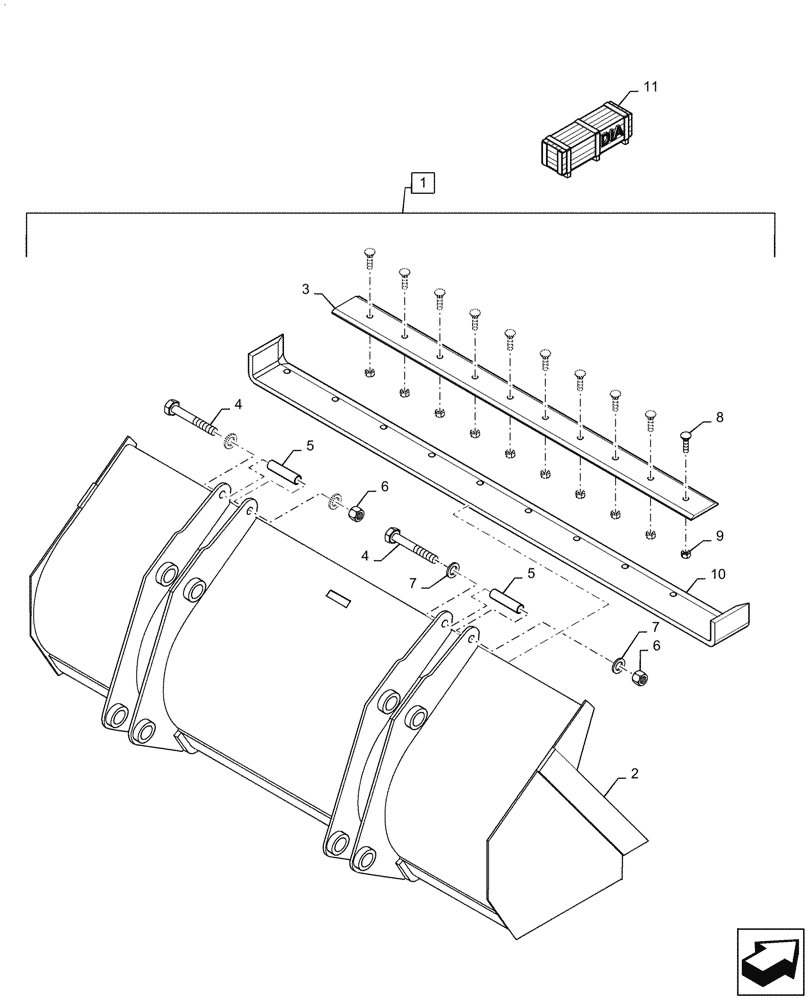

Запчасти Case 570N EP (82.300.AN[01]) - VAR - 747862 - LOADER BUCKET, W/ CUTTING EDGE, 82" (82) - FRONT LOADER & BUCKET

1

84422630

BUCKET,82 Inch W/ Cutting Edge

82", Incl 2 - 10

1шт.

2

87365015

BUCKET,82 Inch LL

82"

1шт.

3

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

Bolt On

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

5

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

Chain Hook

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

8

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

9

29-1012

NUT,3/4"-10, G8

10шт.

10

132988A1

CUTTING EDGE

1шт.

11

84482605

BUCKET

DIA Kit, 82" Gray Bucket With Bolt on Cutting Edge (Order From Ship Direct Only) Incl 1 - 10

1шт.

To See the Full DIA Kit Composition Look For All the Figures Where the DIA Kit P/N is Shown

1шт.
