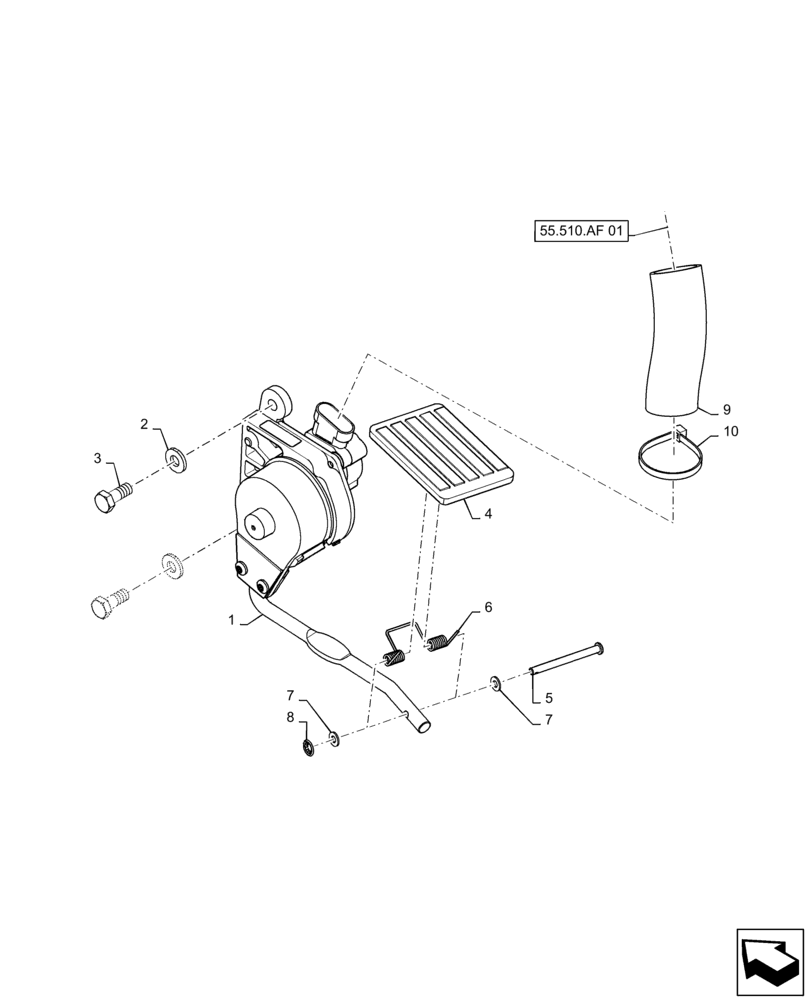

Запчасти Case 570N EP (55.525.AK[01]) - FOOT THROTTLE CONTROL (55) - ELECTRICAL SYSTEMS

1

84423181

THROTTLE CONTROL

Electronic

1шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

4

282242A1

PEDAL

Pad

1шт.

5

322860A1

PIN,7.9mm OD x 55.6mm L

Clevis

1шт.

6

256776A1

SPRING

Foot Throtle

1шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

8

103-1518

SNAP RING,#18, Ext

Push On

1шт.

9

84498292

GUARD

Hose

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
